Young's modulus Y of glass by carnu's method (C.R.)

Order Code: 55762

Category: Physics Trainers

55762 Experimental Set Up has been designed specifically for determination of the Young’s Modulus Y of Glass by Cornu’s method. The set-up consists of Traveling Microscope, Sodium light source, Screw gauge, Vernier callipers, Glass plate,...



SPECIFICATION

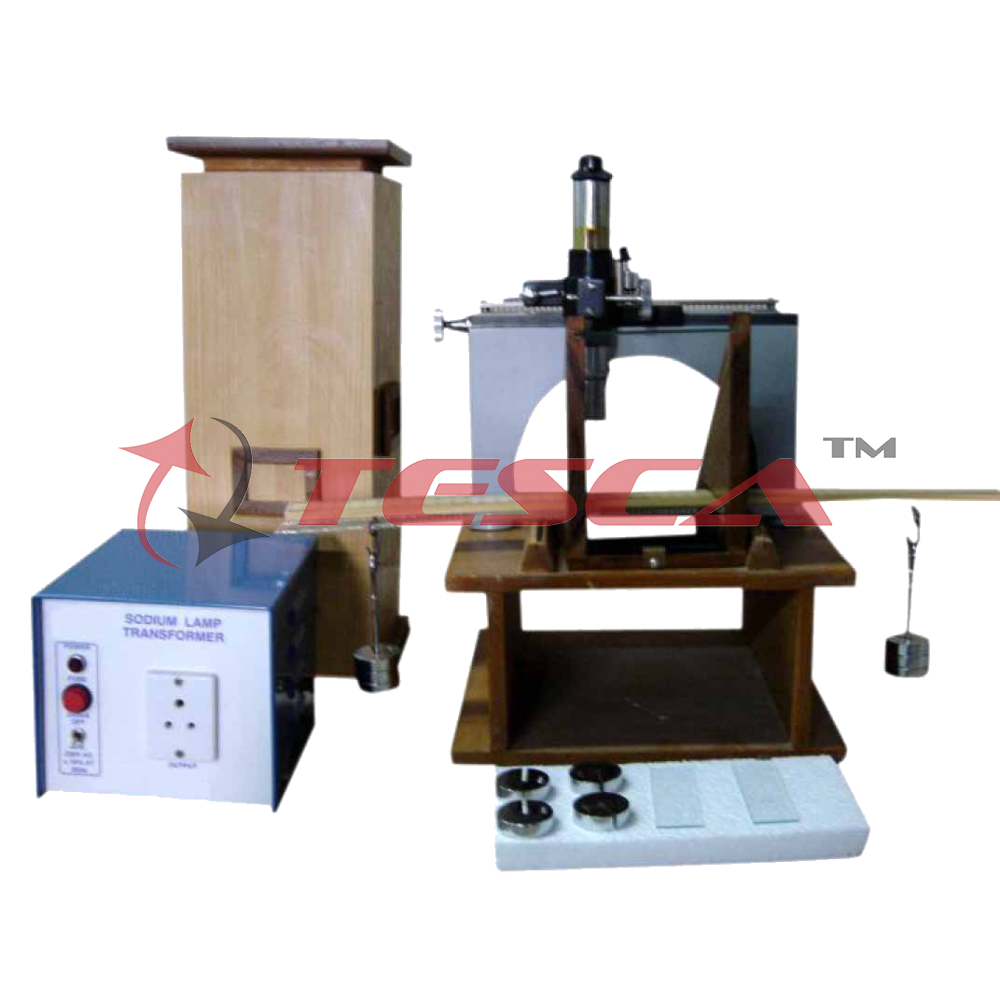

55762 Experimental Set Up has been designed specifically for determination of the Young’s Modulus Y of Glass by Cornu’s method. The set-up consists of Traveling Microscope, Sodium light source, Screw gauge, Vernier callipers, Glass plate, Wooden platform, Glass reflector & Weights with hangers etc.
The set up is complete in all respect and requires no other apparatus. Practical experience on this set up carries great educative value for Science and Engineering Students.

OBJECT
  1. Determination of the Young’s Modulus Yof Glass by Cornu’s method.

FEATURES
The complete Experimental Set-up consists of the following :
  1. Traveling Microscope : Bridge type body.
  2. Sodium light source : Sodium light source complete with sodium lamp 35 watts with vacuum jacket, Transformer & Wooden Box having four holes with slide covers, one each on every side at different heights.
  3. Screw gauge : Micro Meter Screw gauge 0.5mm Pitch
  4. Vernier callipers :
  5. Wooden frame : To carry the experimental glass beam and a small rectangular glass plate. It also consist of two knife edges and plate form for travelling micro scope .
  6. Wooden reflector : It consist of a glass plate at 45° Angle & a rectangular glass plate at bottom.
  7. Two set Slotted : Set of five containing four slotted one hanger each weighing, 50 gm. Weights with Hanger  Set total 250 gm. iron painted .
  8. Half metre scale : Wooden
  9. Microbiology Glass Slide Size 37.5x25x1.5/1No.
  10. Rectangular Glass strip 500 x 25 x 2mm one side 175mm black Paint in center
  11. Weight : 11.7 Kg. (Approx.)
  12. Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
