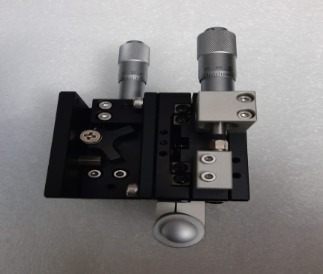

x-y translation stage
Order Code: 24257756.3
Category: General Lab Equipment V
Table Size 70mm×70mm Guide Mechanism Cross-Roller Guide Motion Range ± 10mm Lead Mechanism Ground Screw, Lead 0.5mm Resolution?...
SPECIFICATION
-
Table Size 70mm×70mm
-
Guide Mechanism Cross-Roller Guide
-
Motion Range ± 10mm
-
Lead Mechanism Ground Screw, Lead 0.5mm
-
Resolution?Full/Half Step 0.5μm/0.25μm
-
Resolution?Micro Step (1/20 div) 0.025μm
-
Maximum Speed 2.5mm/sec
-
Accumulated Lead Error ?10μm/20mm
-
Repeatability ?±0.3μm
-
Lost Motion ? 1μm
-
Straightness (Horizontal) ? 0.5μm/20mm
-
Straightness (Vertical) ? 0.6μm/20mm
-
Backlash ?1μm
-
Moment Load Stiffness 0.31 arcsec/N?cm
-
Load Capacity 88.2N (9kgf)
-
Material Aluminum Alloy
-
Finishing Clear-Matt Anodizing
-
Weight 1.7kg
-
Perpendicularity ? 5μm/20mm
