Description:

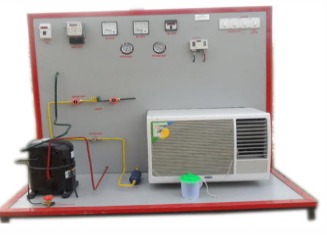

The Windows Air Conditioning Trainer Board is an advanced educational unit designed to provide practical experience and hands-on training in the operation, maintenance, and troubleshooting of split-type air conditioning systems. It features a fully functional 7000 BTU/h air conditioning unit, complete with all essential components, instruments for data acquisition, and a detailed schematic diagram of the hydraulic circuit.
Key Features:
• Durable Steel Structure: The trainer is mounted on wheels for easy mobility and features a steel structure that is oven-treated and painted for durability.
• Silk-Screen Printed Schematic Diagram: Includes a clear and detailed hydraulic circuit diagram with integrated warning LEDs for easy understanding and troubleshooting.

• 7000 BTU/h Split-Type Air Conditioning Unit:

• Hermetic Compressor

• Forced Air Condenser

• 3-Speed Fan Evaporator with Deflector

• Refrigerant Expansion via Capillary Tube

• Remote Control for convenient adjustments

• Valves and Components:

• On-off valves

• Sight glass

• Dehydrator filter

• Valve for plant vacuum, refrigerant charging, and recovery

• Color-Coded Piping: Pipes connecting various components are painted in different colors for easy identification

• Instruments for Data Acquisition:

• Flowmeter for accurate flow measurement

• High and Low Pressure Gauges to monitor system pressure

• 3 Electronic Thermometers with Pt100 Probes for temperature readings at various test points

• Digital Multimeter for electrical measurement

• High and Low Pressure Switches for monitoring system safety

• Thermomagnetic & Earth Leakage Control Button for safety

• Emergency Button for immediate system shutdown when needed

Technical Specifications:
• Power Supply: 230 Vac, 50 Hz, Single-phase – 1000 VA (Custom voltage and frequency available upon request)
• Dimensions: 180 cm (L) x 80 cm (W) x 180 cm (H)
