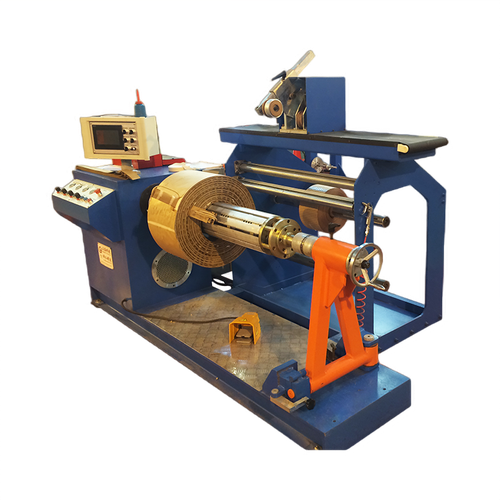

Winding Machine For Motors And Transformers

Order Code: 22236235.26

Category: General Lab Equipment II

Windings: coils for motors, coils for transformers Wires:Minimum diameter: 0.1 mm, Maximum diameter: 2 mm. Coils: Maximum diameter of the coils: 180 mm, Maximum width of the coils: 200 mm Motor: Three-phase motor with brake, 0.75 kW W...



SPECIFICATION

  • Windings: coils for motors, coils for transformers
  • Wires:Minimum diameter: 0.1 mm, Maximum diameter: 2 mm.
  • Coils: Maximum diameter of the coils: 180 mm, Maximum width of the coils: 200 mm
  • Motor: Three-phase motor with brake, 0.75 kW
  • Winding modes: Both automatic and manual winding modes
  • Wire guide with automatic displacement
  • Dimensions: 700 x 700 x 1700 (h) mm
  • Transformer and motor kits:  the kit is complete with magnetic  pack, coils and mechanical parts, copper excluded
