Western Blotting System

Order Code: 24258213.1

Category: General Lab Equipment V

Components: The Western blotting system has two components including PAGE (1 set) and Gel imaging (1 set) systems.  PAGE System: It include all accessories necessary for PAGE protein analysis; Simple and secure lock...



SPECIFICATION

Components: The Western blotting system has two components including PAGE (1 set) and Gel imaging (1 set) systems.
 PAGE System:

  • It include all accessories necessary for PAGE protein analysis; Simple and secure locking system to prevents buffer leakage.

  • Inner electrophoresis chamber with electrodes (with side clip for gel holder 2x): ≥ 1 Pcs.

  • Inner electrophoresis chamber without electrodes (with side clip for gel holder 2x): ≥ 1 Pcs.

  • U sealing strip long for 10 x 10 cm gels: ≥ 4 Pcs.

  • U sealing strip short for 10 x 8 cm gel: ≥ 4 Pcs.

  • U sealing strip Fast Gene (10 x 8 cm): ≥4 Pcs.

  • Plastic dummy cassette short (10 x 8 cm): 1 Pcs.

  • Plastic dummy cassette long: ≥1 Pcs.

  • Gel/blot chamber lid with electrodes (and power cable): ≥1 Pcs.

  • Fast Gene® Gel/Blot chamber tank (PG05): 1 Pcs.

  • Gel shovel: ≥5 Pcs.

  • Comb 1 mm with 10 wells: ≥ 5 Pcs

  • Comb 1 mm with 15 wells: ≥ 5 Pcs

  • Glass spacer long 1 mm: ≥ 5 Pcs.

  • Glass plates short: ≥10 Pcs.

  • Gel casting base: ≥4 Pcs.

  • Gel casting clip: ≥ 4 Pcs.

  • Sealing gaskets: ≥ 5 Pcs.

  • Glass plate holder: ≥1 Pcs.

  • Tube holder: ≥1 Pcs.

  • Comb 0.75 to .80 mm with 10 wells: ≥5 pcs.

  • Comb 0.75 to .80 mm with 15 wells: ≥5 pcs.

  • Glass spacer long 0.75 to 0.80 mm: ≥5 pcs.

  • Glass plate short :10 x

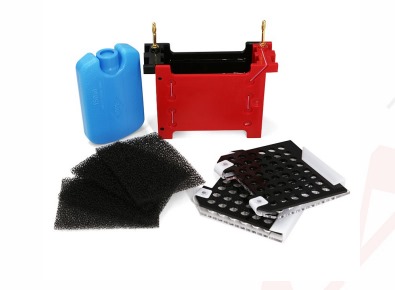

  • Blot frame with electrodes: ≥ 1 Pcs

  • Blot connector: ≥ 2 Pcs

  • Blot sponge: ≥ 5 Pcs

  • Blot cool pack: ≥ 2 Pcs

  • Power supply: Microprocessor controller or advanced technology;

  • Output voltage: Step 01: 10 - 300V / 1V

  • Step 02: 10 - 300V / 1V

  • Output current: Step 01:10 - 400mA / 1mA

  • Step 02: 10 - 400mA / 1mA

  • Watt: ≤60Watt.

  • Output type: Constant voltage or constant current

  • Terminal pairs:≥ 02 pairs

  • Timer: more than 995 minutes with alarm system.

  • Combs, blots and power systems should be adjustable with offered main component.

Gel imaging system:

  • Camera sensor type: Scientific-grade CMOS or advanced technology.

  • Image resolution: ≥ 20 MPixel (≥5400 px x ≥3640 px)

  • Image format: JPEG, TIFF, PNG, BMP or advanced.

  • Exposure time: 13 µs to 10 sec or better.

  • Light sources: Blue/Green LED, White LED light

  • Trans illuminated area: 26 cm x 21 cm or better.

  • Blue/Green LED light: 470-520 nm.

  • Dimensions (H x D x W): ≥ 50 cm x 44 cm x 36 cm

  • Weight: Maximum 22 kg.

  • Display: ≥13'' full HD touchscreen or advanced technology

  • Display resolution: 1920 x 1080 or advanced

  • Internal storage: ≥128 GB

  • Connections: LAN, 3x USB 3.0 or advanced

  • Software: FAS-X imaging software or advanced technology

  • Rated voltage: 100-240 V, 50 / 60 Hz

  • Power adapter 24 V, 6 A

  • Material: Coated aluminum or advanced tested materials.

  • Filter: Amber goggles or advanced technology.

  • Status LED or advanced technology: It have Installation in the front.
