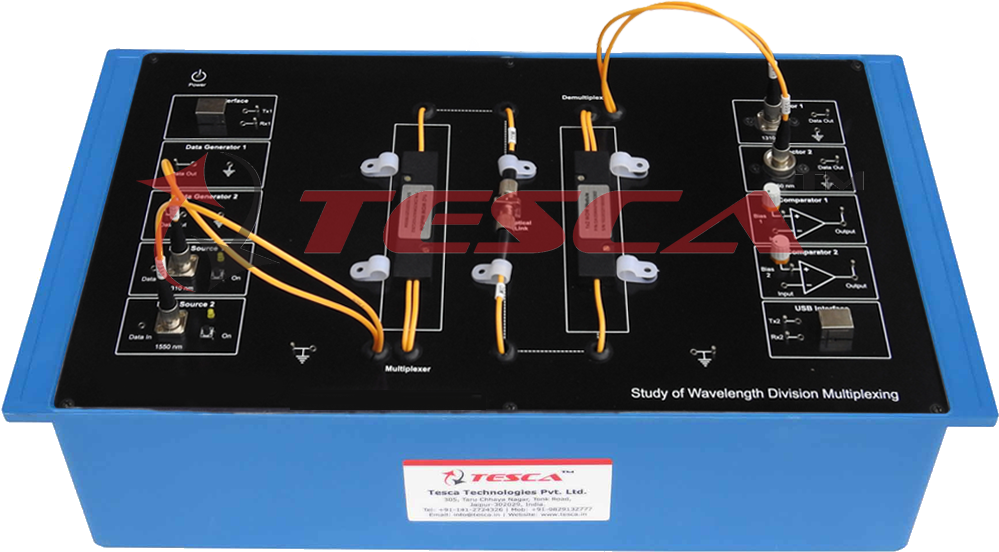

WDM Trainer With Chromatic Dispersion

Order Code: 28514A

Category: Fiber Optic Trainers

28514A Advance Fiber Optics Lab is designed for understanding WDM technique and Chromatic Dispersion measurement . Wavelength-Division Multiplexing is a technology which simultaneously transmits multiple optical channels (wavelength) through a ...



SPECIFICATION

28514A Advance Fiber Optics Lab is designed for understanding WDM technique and Chromatic Dispersion measurement .
Wavelength-Division Multiplexing is a technology which simultaneously transmits multiple optical channels (wavelength) through a single fiber. Today WDM technique is as much a part of optical networking as the fiber itself. The application of WDM technology has spread over cable TV, optical networking, communication, EDFA and many other areas. WDM is a simple and reliable technique which is free from effect of electromagnetic interference and capable of supporting broadband communications. It carries both analog and digital information over separate wavelengths. In WDM two or more channels are combined or split to ensure bi-directional communication over a single fiber.

Chromatic Dispersion can also be measured using the same setup with optional fiber optic cable of 25Km.





Features
•    Self contained product
•    15 Bit Data Generators
•    1310nm & 1550nm Laser sources with external signal modulation facility
•    Functional Block Indicated on-board mimic
•    Comprehensive learning solution
•    RS232 PC Interface
•    Learning Material
•    2 years warranty





Experiments
•    Study of Wavelength-Division Multiplexing and De-multiplexing
•    Data Communication using WDM
•    PC to PC communication using WDM
•    Study and measurement of Chromatic Dispersion (Optional)





Technical specification

Data Generators

2 nos. (15 Bit Data)

Comparators

2 nos. (5V TTL Output)

Light Sources

2 nos, Laser Diode, Power Output -3dB

Optical Detectors

2 nos, Photo Diode, Measuring Range +3dB -50dB

WDM Coupler

2X1, Coupling Ratio 50:50,

Operating Wavelengths (all)

1310nm & 1550nm

Connector types (all)

FC

Fiber Optic Cable

Single Mode, 25Km (Optional)

PC-PC Communication

Using 2 Channels (RS-232 Port)

Advance Fiber optics Lab

2  Kg    approximately

Fiber Spool 25Km (Optional)

3  Kg    approximately

Power Supply

230 V ±10%, 50/ 60Hz

Power Consumption

3.5 VA approximately

Weight

2.3 Kg approximately

Dimensions (mm)

W 450 ´ D 280 H 113

Learning material

Online (Theory, procedure, reference results, etc).





Accessories
Patch cord 16” (2mm)    : 10 nos.
Mains cord    : 1 no.
RS232 Cable, Length 1 meter : 2 nos.
