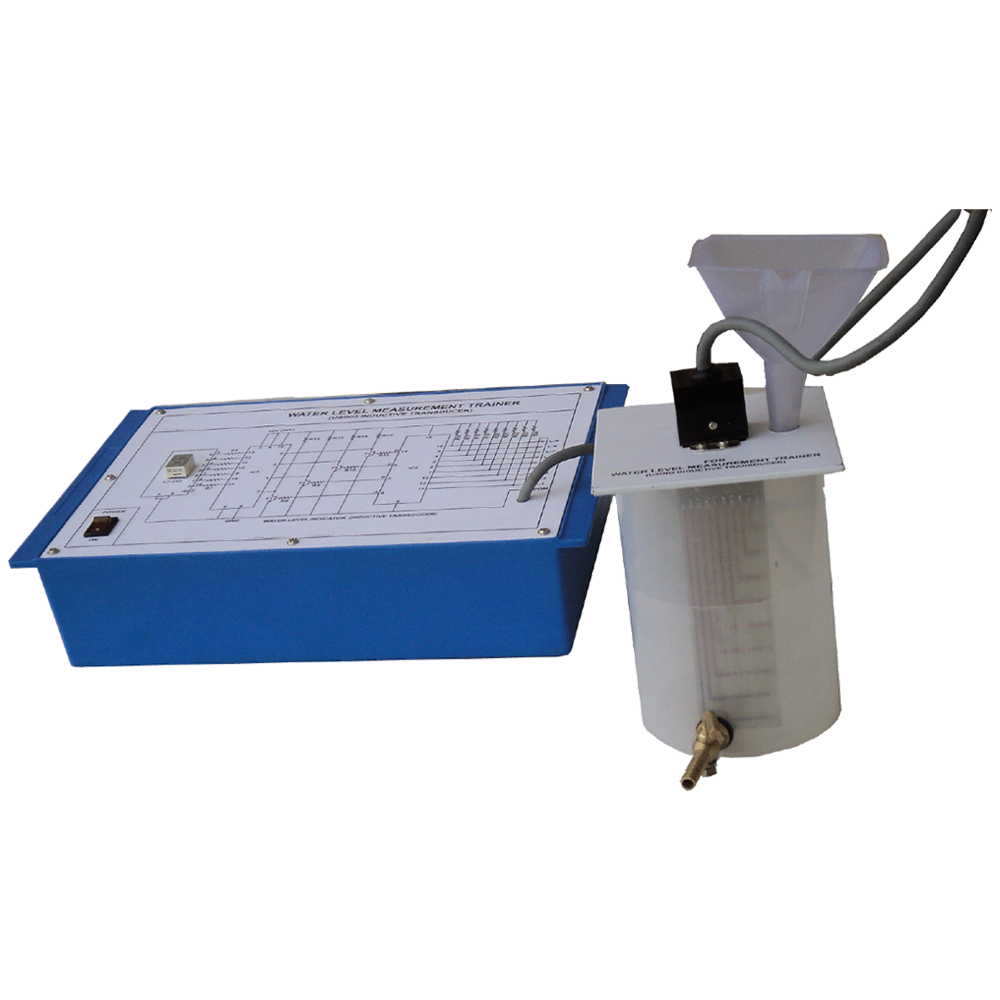

Water level Measurement Trainer (Using Inductive & Capacitive Transducer)

Order Code: 52091

Category: Instrumentation Trainers

52091 provides study of Water Level Measurement Technique using Inductive Transducer. Water Level Measurement Trainer is designed to learn concept of Water Level Measurement. It helps students & industry professionals to understand operation of l...



SPECIFICATION

52091 provides study of Water Level Measurement Technique using Inductive Transducer. Water Level Measurement Trainer is designed to learn concept of Water Level Measurement. It helps students & industry professionals to understand operation of level sensors in detail providing the theoretical and experimental knowledge of Inductive Water Level Sensor.



Object:

  1. To study Water level Indicator using Inductive Transducer.



Features:
The board consists of following built in parts

  1. 5V D.C. at 100mA, I.C. regulated Power Supply.
  2. Inductive Water Level Sensor capable of measuring level from 0 to 9 (nine interval).
  3. A single 7 segment display for displaying Inductive Water Level in nine interval.
  4. Adequate no. of other electronic components including ICs and Transistors
  5. Mains ON/OFF switch and fuse.
  6. The unit is operative on 230V AC ±10% at 50Hz.
  7. Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
  8. Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
  9. Weight : 2 Kg. (Approx)
  10. Dimension : W 340 x H 125 x D 210



List of Accessories:

  1. Inductive Water Level Vessel with wired 12 pin connector with lead.
  2. One funnel 4”
