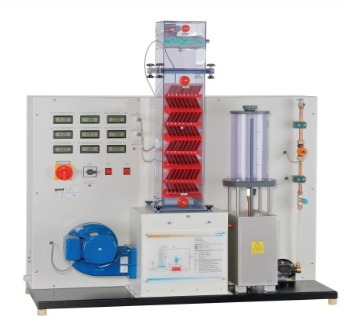

WATER COOLING TOWER
Features

• principle and characteristic variables of a wet cooling tower with forced ventilation

• transparent, easily interchangeable cooling column with wet deck surface

• 4 additional cooling columns available as accessory

Specification

• principle of a wet cooling tower with cooling column and forced ventilation

• interchangeable cooling columns with different wet deck surfaces available as accessories

• water circuit with pump, filter, valve and a nozzle as atomiser

• three-stage heater with thermostat for water heating

• radial fan for forced ventilation

• throttle valve to adjust the air flow

• demister unit at the outlet of the cooling columns minimises water loss

• tank for additional water compensates for water loss

• display of temperature, differential pressure, flow rate and humidity

• software for data acquisition via USB under Windows 10

Technical data
Volumetric air flow measurement via orifice: Ø 80mm Heater, adjustable in three stages:

• 500W

• 1000W

• 1500W

Thermostat: switches off at 50°C
Fan

• power consumption: 250W

• max. pressure difference: 4,3mbar

• max. volumetric flow rate: 13m3/min

Pump

• max. head: 70m

• max. flow rate: 100L/h

Tank for additional water: 4,2L
Measuring ranges

• differential pressure: 0...10mbar (air)

• flow rate: 12...360L/h (water)

• temperature: 2x 0...50°C, 3x 0...100°C

• rel. humidity: 10...100% 230V, 50Hz, 1 phase
