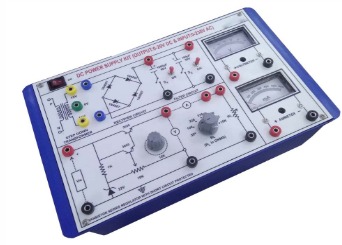

Voltage Regulator Trainer
Order Code: 24258359.10
Category: General Lab Equipment V
SCOPE OF LEARNING Trainer used to study Voltage Regulation using: • Shunt Transistor • Transistor Shunt and Series Voltage Regulator • Diode Characteristics Trainer EXPERIMENTS 1. Study of Transistor Shunt Voltage Regulator 2. S...
SPECIFICATION
SCOPE OF LEARNING
Trainer used to study Voltage Regulation using:
• Shunt Transistor
• Transistor Shunt and Series Voltage Regulator
• Diode Characteristics Trainer
EXPERIMENTS
1. Study of Transistor Shunt Voltage Regulator
2. Study of Transistor Series Voltage Regulator
3. Study of Diode Characteristics (Si, Zener, LED)
TECHNICAL SPECIFICATIONS
Analog Meters:
• Voltmeter: 30V
• Ammeter: 250mA
Power Supplies:
• 12-0-12V, 750mA AC Isolated Power Supply
• Operates on Mains Power: 230V, 50Hz ±10%
Mounted Components:
• Bridge Rectifier using 1N4007
• Capacitors as Filter
• Load Resistor
• Variable Resistor
SALIENT FEATURES
• Front panel made of high-class insulated Printed Circuit Board (PCB) sheet with well-printed circuits and symbols
• Fuse for short circuit protection
• Instruction manual included
• Connections provided via 4mm colored sockets
• Includes 4mm patch cords
• Trainer housed in an ABS plastic cabinet
• Trainer set dimensions: 12” x 8
