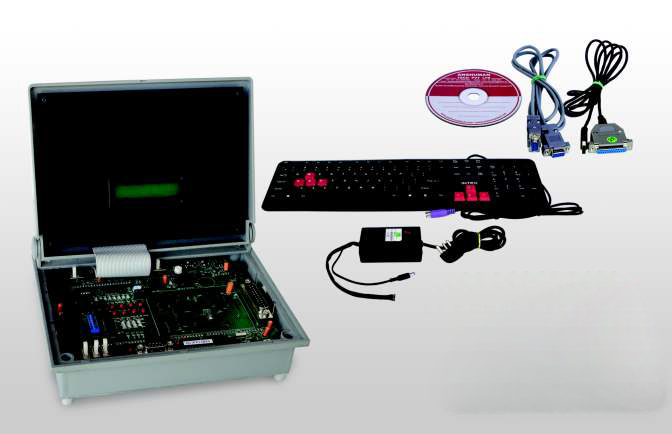

SALIENT FEATURES

• Aesthetically designed Injection moulded Plastic enclosure.
• XPO series of VLSI / Embedded trainers VIZ; CPLD, FPGA, ARM7, 89C51Rd2, PIC16F, PIC18F, AVR, Arduino equivalent 328P, Shakti / Vega etc.
• Set of Users Guide provided with each unit with emphasis on C Programming as well as assembly language programming.
• In circuit system programming (ICSP) supported through PC ports of COM/LPT(JTAG) or USB as applicable
• Can interface to application boards of XPO series microprocessor trainers saving customer investment.
• I2C, SPI bus interface.

Technical Specifications of Motherboard ::

• Speed
  • 16 MHz crystal operated multi-output clock source to operate various resources on Mother Board like CPU, Baud rate, T/C etc.
• I/O Pins
  • 48 I/O lines through 2 Nos. of 26 pin FRC header.
• Serial Interface
  • RS-232c serial interface using RS232 driver IC through 9 Pin male D connector.
• Parallel Interface
  • 25 pin male D connector for Parallel interface for JTAG based programming.
• USB to Serial Interface
  • Using USB to serial converter IC CP2102.
• Display (Choose one option)
  • 16 x 2 LCD (Backlit) 16 x 2 Jumbo LCD (Backlit) 20 x 4 LCD (Backlit) 40 x 2 LCD (Backlit)
• Key Board (Optional)
  • Keyboard interface to support 101 keys PC AT/PS2 / USB keyboard.
• Battery Backup
  • Lithium battery (3V/48mAH) provided to supply power to RTC.
• Additional Resources
  • Ext. L/S (8Ω/0.5W) I/F for experiments on frequency synthesis. l Reset push button.
  • Variable Slow CLK (2Hz-64Hz) provided for internal timers/counter functions applications.
  • Variable Pot (0 -5V) to stimulate analog I/P for built in ADC wherever applicable.
  • General purpose bicolor SMD (green, red) 8 x 2 LEDs for status indication, 8 SMD Push Button Switches & 8 DIP switch with 8 bicolour SMD (Green Red) indicator.
  • Optional: 1) Bread board with 640 tie points & 200 distribution points in place of I2C based 24C512 (EPROM), DS1307 (RTC), SPI (93C46). 2) DS1820 temperature sensor OR variable slow clock by changing link setting. 3) I2C based temperature sensor LM75.
  • On board power supply: +3.3V, variable +1.25 to 2.5V, 3.1V to 4.2V variable.
• Power Supply Options (SMPS), 2 options
  • Select one of 2 options I) 5V /2.5 Amp SMPS with RCA plug. II) 5V /2.5 Amp SMPS with RCA plug +12 V/ 850 mA, -12V/250 mA with 4 pin reliamate SMPS.
• Application Modules (optionally) : To be inserted
  • VGA 15 pin D (high density F) l Ethernet (RTL 8019) l RS485 Interface l Bluetooth l Zigbee
  • Graphic LCD (128 x 64) Adaptor l Touch Panel Interface l IR Transreceiver, SD Card.
  • Note: Many more modules are in pipe line for e.g. RF ID Card Reader, RF Sensors, Altimeter, Magnetometer, Accelerometer, Gyroscope etc.
• Mechanical Details
  • Aesthetically designed Injection molded plastic enclosure of size 215(L)x165(W)x75(H)mm.
  • Weight = 900 gm.(1.5 Kg with manuals)
