Viscosity Measurement Apparatus

Order Code: 22235701.3

Category: General Lab Equipment I

Features The Experimental Set-up consists of the following: Long cylindrical glass jar height about one meter with fitted on triangular stand. Transparent viscous fluid (Glycerin) One Liter Spherical ball QTY. 40Nos.( Dia 6 & 8mm 20 Pc...



SPECIFICATION

Features

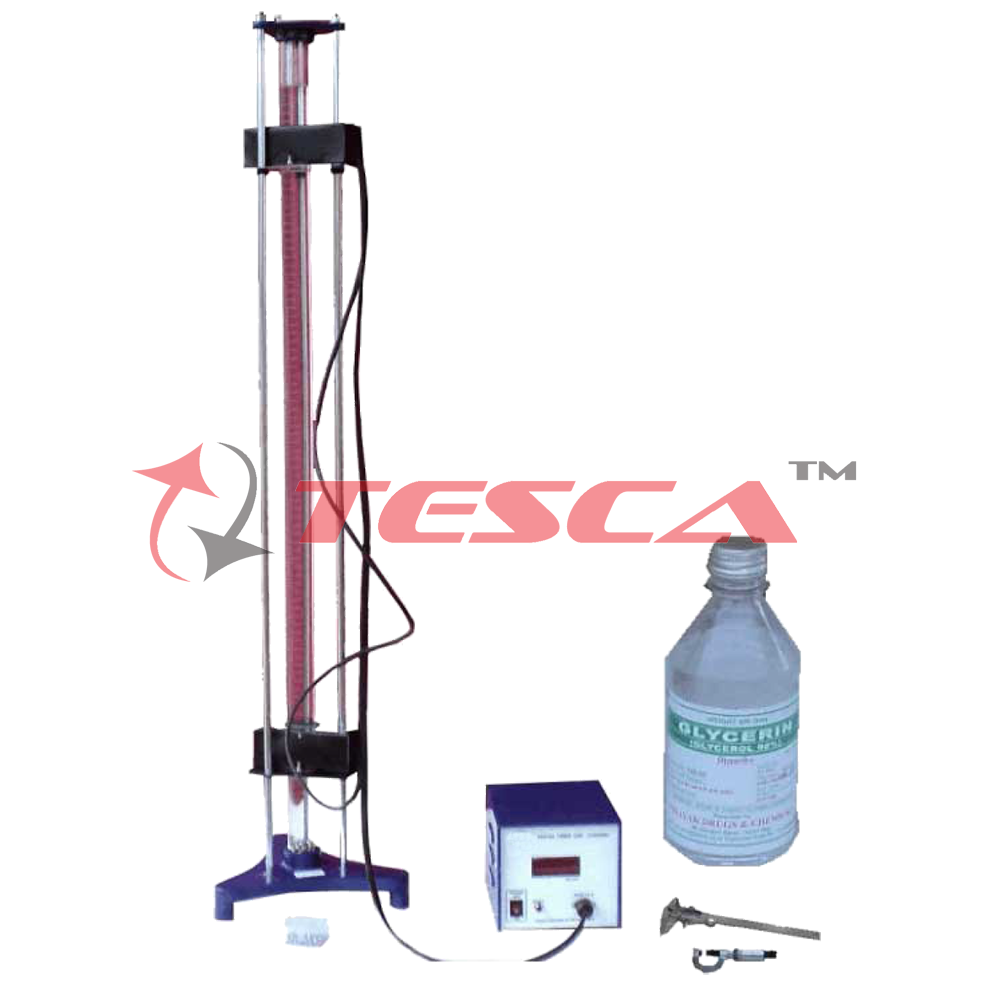

The Experimental Set-up consists of the following:

  1. Long cylindrical glass jar height about one meter with fitted on triangular stand.
  2. Transparent viscous fluid (Glycerin) One Liter
  3. Spherical ball QTY. 40Nos.( Dia 6 & 8mm 20 Pcs each)
  4. Screw gauge
  5. Vernier calipers
  6. Digital Timer One Channel
    • Specification
    • START operation by Input - I
    • STOP operation by Input - II
    • RESET by a push button.
    • RANGE : 999.9 Seconds
    • RESOLUTION : 0.1 Second
    • ACCURACY : ± 0.01% (Quartz controlled)
    • DISPLAY : Four 12.5 mm bright Seven Segment display.
    • POWER REQUIREMENT : 230V AC ± 10% at 50Hz
    • Strongly supported by detailed Operating Instructions.
  7. Weight : 2.00 Kg. (Approx.)
  8. Dimension : W145 x H140 x D 200mm
