Vertical & Horizontal Condenser
Order Code: 14028
Category: Heat Transfer Lab
Introduction: The present set-up offers a comparative study of Vertical & Horizontal condenser, which can be operated one at a time. Condenser consists of Stainless steel shell, with stainless steel tubes. Cold fluid flows through inside the t...
SPECIFICATION
Introduction:

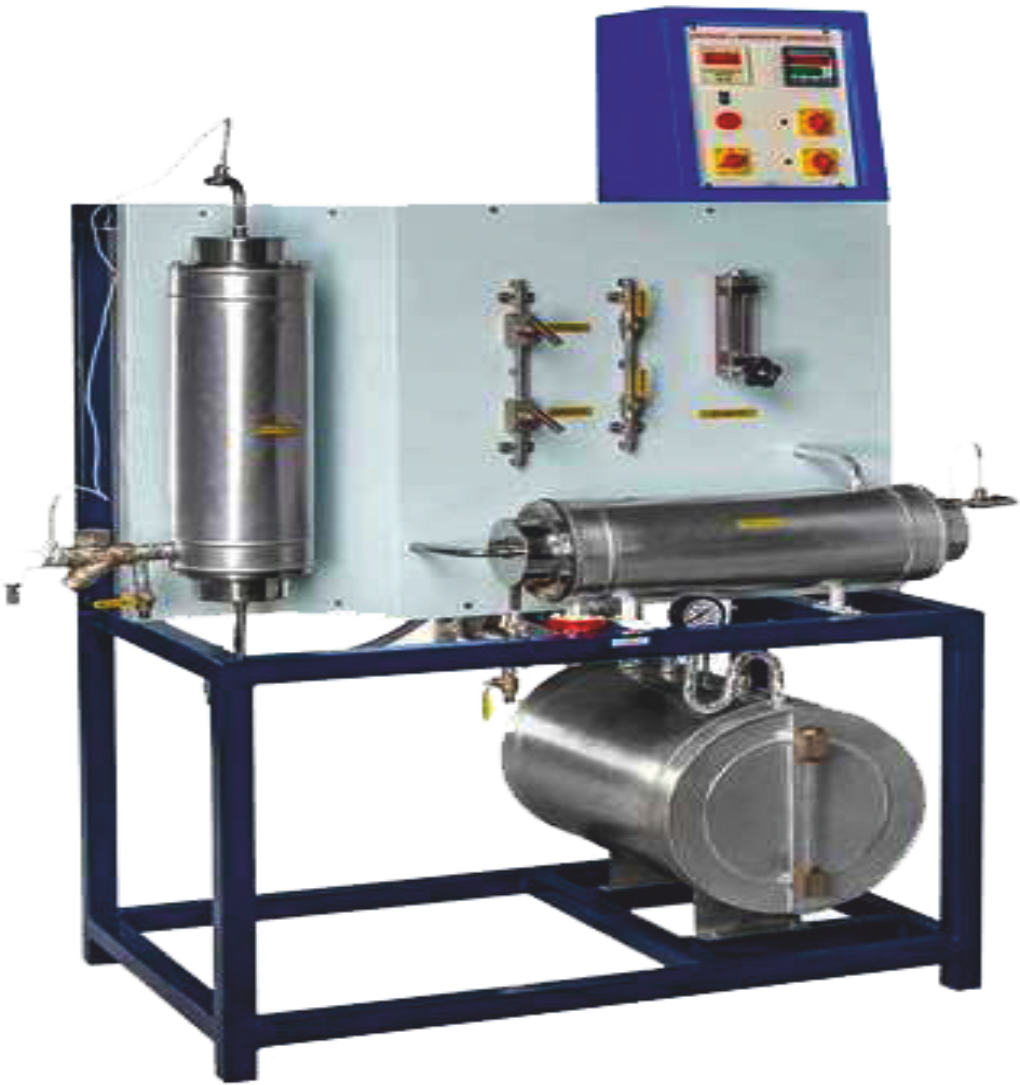

The present set-up offers a comparative study of Vertical & Horizontal condenser, which can be operated one at a time. Condenser consists of Stainless steel shell, with stainless steel tubes. Cold fluid flows through inside the tubes and steam flows through the shell. Valves are provided to control the flow rates of cold fluids. Flow rate of cold water is measured using a Rotameter. Shell is fitted with steam traps from where condensate is collected in measuring cylinder. Temperature of inlet and outlet of both hot & cold fluids are measured by temperature sensors.
Specifications:
System : Steam to Water
Condensers: 2 Nos. (Vertical & Horizontal)
Insulated by Ceramic wool and cladding by aluminium foil Shell : Material stainless steel.
Inner Dia 100 mm,
Length 500 mm (Approx.)
Tubes : OD 12.7mm,
Length of tubes 500mm
Condensate Measurement : Measuring Cylinder & Stopwatch
Water Flow Measurement : Rotameter
Steam Generator: Made of stainless steel fitted with level indicator, pressure gauge, safety valve, drain and insulated with ceramic wool & cladding with Aluminium foil 0 Heaters: Nichrome wire heater (2 Nos.)
Control panel comprising of: Digital Temp. Controller: 0199.9 C (For 0 Steam Generator)
Digital Temp. Indicator: 0-199.9 C, with multi-channel switch
Temperature sensors: RTD PT-100 type with Standard make On/Off switch, Mains Indicator etc.
