Product introduction

This training system is based on BYD Qin EV450 pure electric vehicle. Equipped with six detection boards, it can detect the working status of sensors and actuators of each system in real time. This product can intuitively understand the system structure of pure electric vehicles, is closer to the real vehicle environment, and is more convenient for teaching than real vehicles.

Functional characteristics

• Based on the complete pure electric vehicle, a large area of the body covering of the original vehicle is cut. The body and chassis are not separated, and the power and high-voltage system components of the original vehicle are notdamaged (the power system and high-voltage system components are not cut), after dissection, the entire highvoltage system and high-voltage components are exposed as much as possible for easy observation. The relative installation positions of the original vehicle accessories remain unchanged, and all functions of the original vehicle are retained, and the vehicle can be driven on the ground.

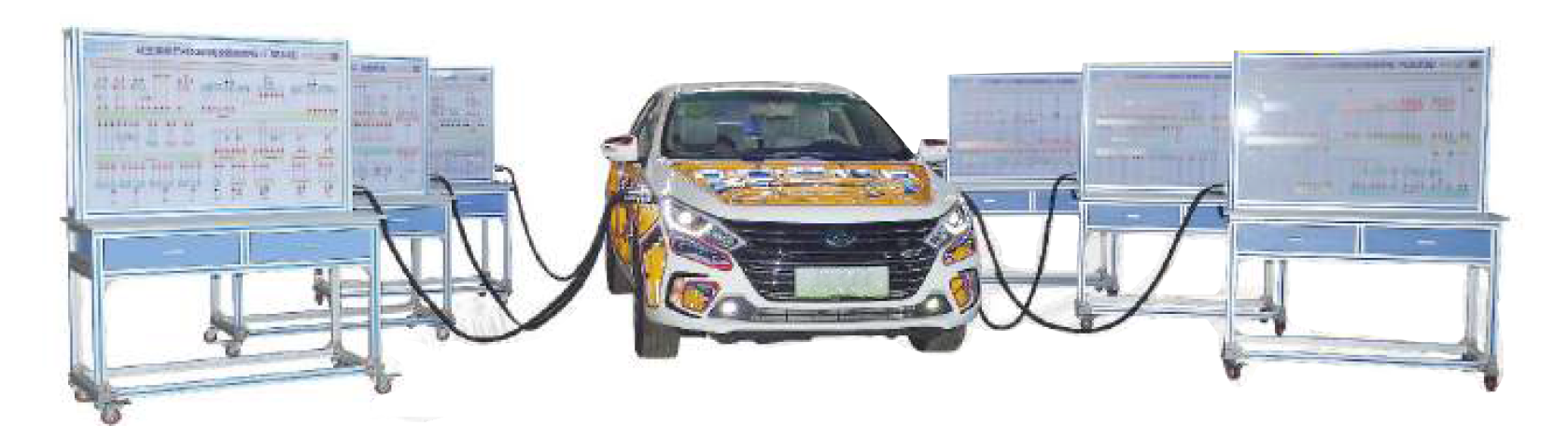

• Install a vehicle circuit detection part. Each detection port is connected to a matching detection bench, which can test the battery management system, charging system, drive system, air conditioning system, steering system, ABS system, lighting system, and wiper system. Wait for signal detection, The detection table panel is printed with a complete circuit schematic diagram and is equipped with detection terminals. Multimeters and oscilloscopes can be used to detect the resistance, voltage, frequency, waveform, etc. of each sensor and actuator.
• It can be connected to a special or general automobile decoder ta perform self-diagnostic functions such as reading fault codes, clearing fault codes, and reading data
• Streams for the entire vehicle system.

Technical Specifications

Product size : 4700*1800*1600mm

Working power supply : 12VDC/original vehicle high-valtage battery pack
