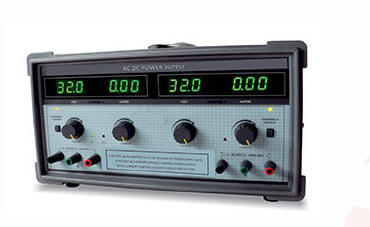

Variable AC & DC power supply

Order Code: 23246569.1

Category: General Lab Equipment II

Continuous regulation from 0-24 V AC and DC.  Separate loads to the DC and the AC connections, and the voltages can be set separately.  0-24 VAC/DC (stabilized) Ripple and noise (max): 25 mV pp  Current 6 -10 A 4 digital displ...



SPECIFICATION

  • Continuous regulation from 0-24 V AC and DC.
  • Separate loads to the DC and the AC connections, and the voltages can be set separately.
  • 0-24 VAC/DC (stabilized) Ripple and noise (max): 25 mV pp
  • Current 6 -10 A 4 digital displays: 2 (voltage & current) for AC and 2 for DC
  • Electronically protected against overloads.
  • Power consumption (max): 350 W
  • LED indicators in both the DC and AC ranges
  • Electronic, continuously adjustable current limiter, adjusted with screwdriver.
  • Line voltage: 240 V
  • Power Plug Options: Middle East standard
