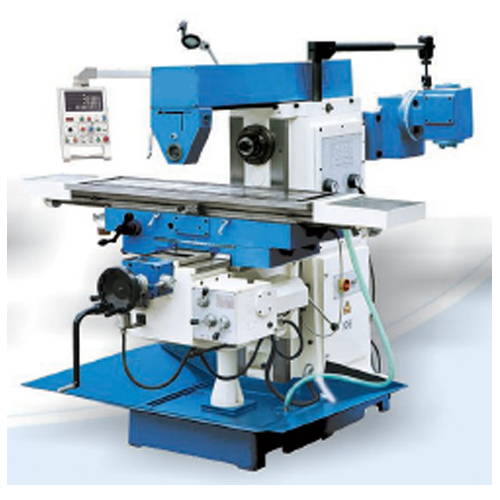

Universal Milling Machine
Order Code: 18193787.1
Category: General Lab Equipment IV
Machine part - Size Table size - 1320x360mm Longitudinal Travel - 1000mm Cross Travel - 300mm Number /width /distance of T-slot - 3-14mm-95mm Spindle Taper - ISO50 ...
SPECIFICATION
- Machine part - Size
- Table size - 1320x360mm
- Longitudinal Travel - 1000mm
- Cross Travel - 300mm
- Number /width /distance of T-slot - 3-14mm-95mm
- Spindle Taper - ISO50
- Distance between spindle axis - 70-400mm
- Spindle speed range (steps) - vertical:58-1800 horizontal:60-1750rpm
- Longitudinal power feed speed range - 22-420mm/min
- Cross power feed speed range - 22-393mm/min
- Vertical power feed speed range - 10-168mm/min
- Swivel angle of table +-35o
- Swivel angle of Table - 3600
- Ram Travel - 500mm
- Max.Load of work table - 300kg
- Spindle Motor power - 4kw(5.36hp)
- Features -
- 3 Axis power feed,
- Large Table area
- Compact design
- Universal head
- Horizontal milling
