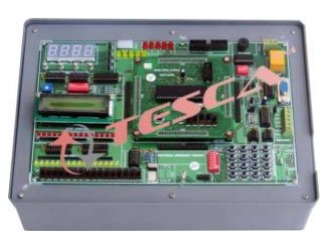

Universal Microcontroller Trainer

Order Code: 24258143.7

Category: General Lab Equipment V

Universal Microcontroller Base Specifications Microcontroller Socket: For UM Series Microcontroller Modules 8-bit LEDs: Two-color LEDs, adjustable via jumper for Active Hi or Active Low 8-bit LED with Buffer Circuit: Adjustable by jumper fo...



SPECIFICATION

Universal Microcontroller Base Specifications

  • Microcontroller Socket: For UM Series Microcontroller Modules
  • 8-bit LEDs: Two-color LEDs, adjustable via jumper for Active Hi or Active Low
  • 8-bit LED with Buffer Circuit: Adjustable by jumper for Active Hi or Active Low
  • Individual Two-Color LED: Equipped with current-limiting resistor
  • DIP Switch: 8-bit and 4-bit push-button switch
  • Piezo Speaker: One set included
  • Reference Voltage Channels: Four channels adjustable by trim pot (1-turn), one channel fine-adjustable (25-turn trim pot)
  • Serial Ports: Two RS-232 serial ports with LED indicators for transfer status
  • USB Port: One port included
  • Voltage Regulator: Adjustable between 3.3V and 5V for microcontroller board
  • Fixed Constant Voltage Source: 5V
  • Power Switch: On/Off power switch
  • Proto Board: 400 connecting points

Microcontroller Modules
PIC 8/14/20 PIN Microchip μC Module:
Supported Models:

  1. PDIP-8: PIC12F508, 509, 510, 609, 629, 635, 675, 615, 683
  2. PDIP-14: PIC16F505, 506, 610, 630, 676, 688, 684, 636, 616
  3. PDIP-20: PIC16F631, 677, 639, 785, 685, 689, 690

PIC 18 PIN Microchip μC Module:
? Supported Models:

  1. PIC16Fxxx: 54(A), 628(A), 648, 818, 819, 716, 84(A)
  2. PIC18Fxxx: 1220, 1320

PIC 28 PIN Microchip μC Module:
Supported Models:

  1. PIC16Fxxx: 72, 73, 737, 767, 872, 873, 876, 886, 913
  2. PIC18Fxxx: 252, 2525, 253, 2550, 258, 2680

PIC 40 PIN Microchip μC Module:
? Supported Models:

  1. PIC16Fxxx: 59, 74, 77, 724, 727, 774, 777, 874A, 877A, 884, 887, 914, 917
  2. PIC18Fxxx: 442, 448, 452, 458, 4220, 4221, 4320, 4321, 4331, 4450, 4480, 4585, 4620

dsPIC 28 PIN Microchip μC Module:
Supported Models:

  1. dsPIC30F2010: 28-pin

CPLD Xilinx μC Module:
Supported Models:

  1. UM-CPLD-A: Supports Xilinx PLCC-44 packages (e.g., XC9536XL, XC9536, XC9572XL, XC9572)

MCS51 PLCC-44 μC Module:
Supported Models:

  1. MCS-51 Series: AT89S51/52/53/8252/8253

ARM7 NXP μC Module:
Model: NXP LPC2148 ARM7 TDMI-S controller (supports both 16-bit and 32-bit operation)
AVR Atmel μC Module:
Supported Models:

  1. ATMEGA64: Flash 64KB, RAM 4KB, EEPROM 2KB
  2. ATMEGA128: Flash 128KB, RAM 4KB, EEPROM 4KB

PSoC 28 PIN Cypress μC Module:
Supported Models
:

  1. CY8C27443: Flash 16KB
  2. CY8C29466: Flash 32KB

PSoC 44 PIN Cypress μC Module:
Supported Models:

  1. CY8C29566-24AXI

PSoC 56 PIN Cypress μC Module:
Supported Models:

  1. CY8C24894-24LFX

Programmers
AVR Programmer:

  1. Model: AVR-910
  2. Supports SPI port programming and In-Circuit Programming (ICP)
  3. Voltage Range: 3.0-5.0V
  4. Compatible with AVR Studio

PIC Programmer:

Model: PIC Programmer Module (similar to Microchip’s PicKit2)

Supported Models:

  1. PIC16Fxx, PIC12Fxx, PIC10Fxx
  2. PIC18FXKxx, PIC18FXJxx, PIC18Fxx
  3. PIC24Fxx, dsPIC30Fxx, dsPIC30 SMPS, dsPIC33Fxx
