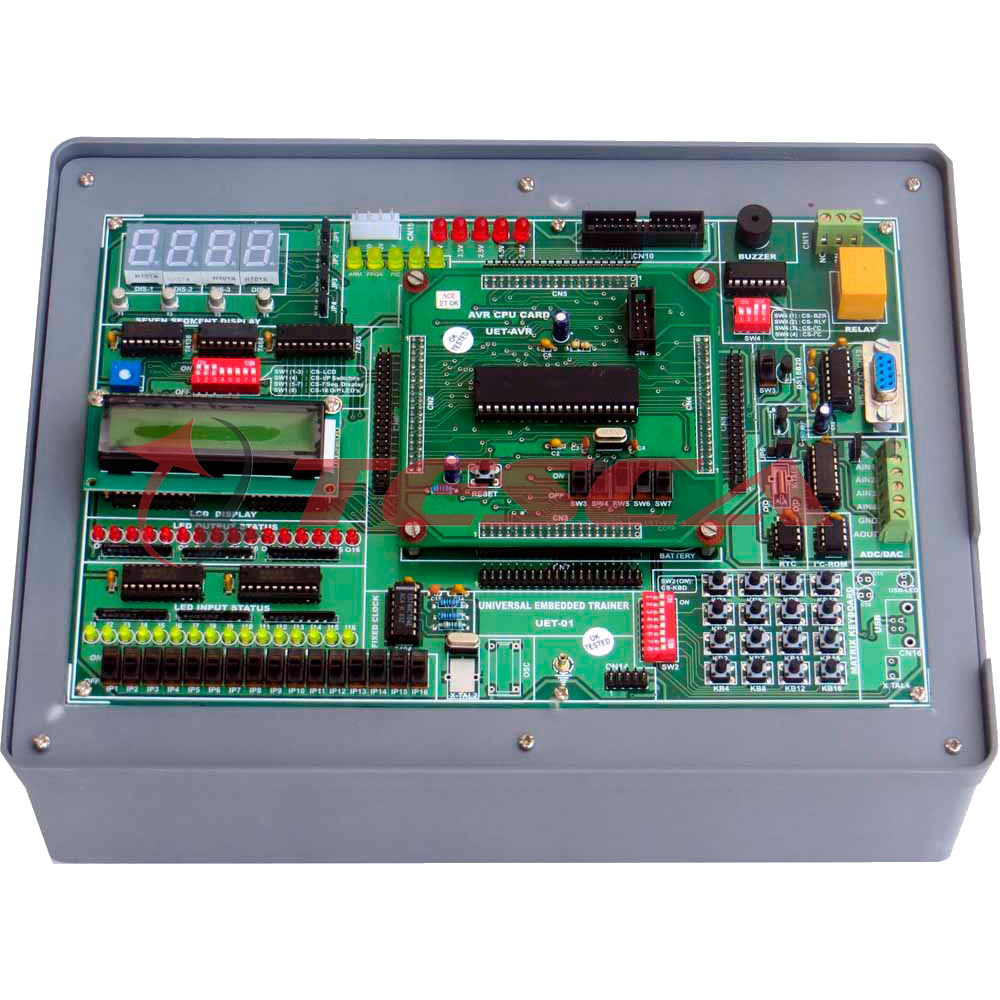

Universal Embedded Trainer

Order Code: 43511

Category: Embedded Trainers

Order Code - 43511 is a single board Embedded Kit based on ARM, AVR, 89CXX, PIC Microcontrollers for any Embedded applications. Feature Optional- Not Included - Daughter CPU Boards for 43512 - Philips 89C61X2 Microcontrolle...



SPECIFICATION

Order Code - 43511 is a single board Embedded Kit based on ARM, AVR, 89CXX, PIC Microcontrollers for any Embedded applications.

Feature
  1. Optional- Not Included - Daughter CPU Boards for
    • 43512 - Philips 89C61X2 Microcontroller.
    • 43513 - Microchip PIC 16F877A Microcontroller.
    • 43514 - Microchip PIC 18F452 Microcontroller.
    • 43515 - Philips ARM LPC 2148 Microcontroller.
    • 43516 - ATMELATmega32 Microcontroller.
  2. ISP Programming facility for all Microcontrollers.

Onboard Applications
  1. 16 LED’s to display Digital Output.
  2. 16 Switches to give Digital Input indicated by LED’s.
  3. 16x2 Alphanumeric LCD backlit display.
  4. 4x4 Matrix Keyboard.
  5. Miniature Buzzer.
  6. 12V SPDT Relay.
  7. 4 digit seven segment displays.
  8. I2C compatible:
    1. 24C512 EEPROM (64KB).
    2. DS1307 RTC with suitable battery.
    3. 4Ch. 8bit ADC & 1Ch. 8 bit DAC using PCF8591.
  9. Temperature sensor interface using
  10. Temperature sensor interface using
  11. 24 I/O Lines Provided on a 26 pin FRC Connector for external interface.
  12. On board supply /- 12V, 5V, 3.3V, 2.5V, 1.5V & 1.2V is provided.
  13. Supply Input Voltage: 230VAC.
  14. All ICS are mounted on IC Sockets.
  15. Bare board Tested Glass Epoxy SMOBC PCB is used.
  16. Attractive Wooden enclosures of Light weight Australian Pine Wood.
  17. User's Manual with `C’ source code sample programs for all on board applications.
