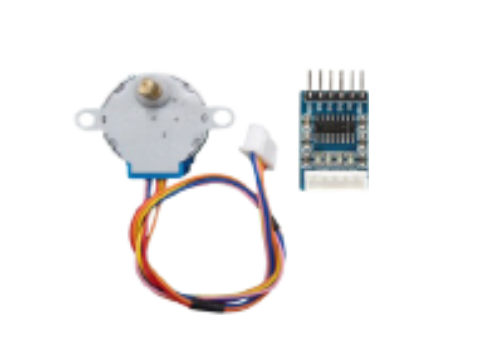

Unipolar Stepper Motor 5V DC, 4 Phase

Order Code: 21225361.8

Category: General Lab Equipment I

Specifications:- Rated voltage: 5V DC Reduction Ratio: 64:1 Step Angle: 5.625° /64 Frequency: 100Hz Self-positioning Torque: >34.3mN.m Friction torque: 600-1200 gf.cm Pull in torque: 300 gf.cm Rated Current (mA) : 500 mA ...



SPECIFICATION

Specifications:-

  • Rated voltage: 5V DC
  • Reduction Ratio: 64:1
  • Step Angle: 5.625° /64
  • Frequency: 100Hz
  • Self-positioning Torque: >34.3mN.m
  • Friction torque: 600-1200 gf.cm
  • Pull in torque: 300 gf.cm
  • Rated Current (mA) : 500 mA
  • Step Angle : 5.625°/64
  • Reduction ratio : 64:1
  • Resistance (Ω) : 50
  • In-Traction Frequency(Hz) : >600 Hz
  • Out-Traction Frequency(Hz) : >1000 Hz
  • In-traction Torque(mN-m) : 34.3
  • Self-positioning Torque(mN-m) : 34.3
  • Friction Torque(gf-cm) : 600-1200
  • Pull in Torque(gf-cm) : 300
  • Insulation Grade : A
  • Shaft Type : Double D-Type
