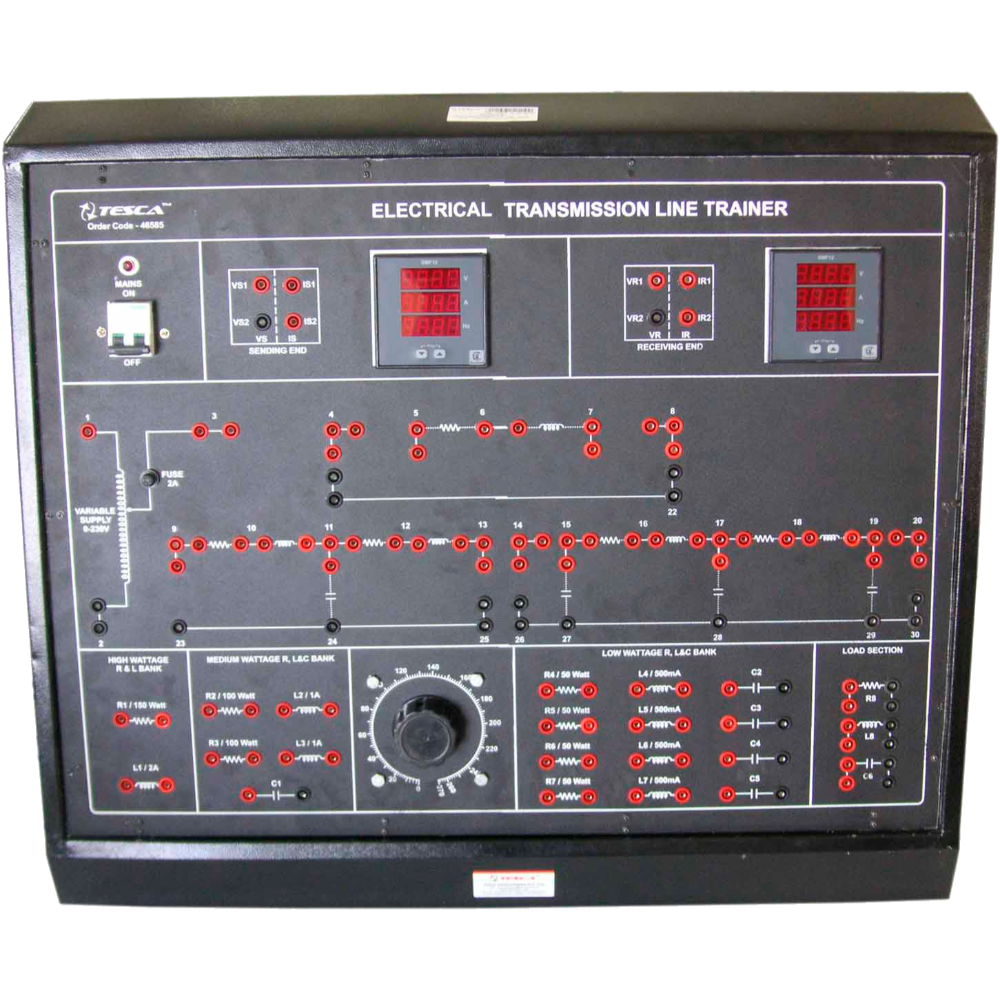

Transmission Line Training System 1 Phase

Order Code: 19204659.15

Category: General Lab Equipment III

The trainer should consist of the following : Mains Supply : 230 V AC ± 10%, 50Hz  Single Phase Variac Input: 230V   Output : 0-270V Current: 0-5 Amp. Display Measurement  Voltage Input : > 25...



SPECIFICATION

The trainer should consist of the following :

  1. Mains Supply : 230 V AC ± 10%, 50Hz
  2. Single Phase Variac Input: 230V
    1.  Output : 0-270V Current: 0-5 Amp.
  3. Display Measurement
    1. Voltage Input : > 25 V
    2. Current Input : > 0.2 A
    3. Active Power : > 20 Watt & <2000 Watt
    4. Reactive Power : > 20 VAR & <2000 VAR
    5. Apparent Power : > 20 VA & <2000 VA
  4. Load
    1. Resistor : 700/100W
    2. Inductor : 800 mH/ 0.5A
    3. Capacitor : 12.5 F / 450V
    4. The layout should allow for test on the single phase equivalent to be carried out by the Phi and Tee method on medium and long simulated length of line.
