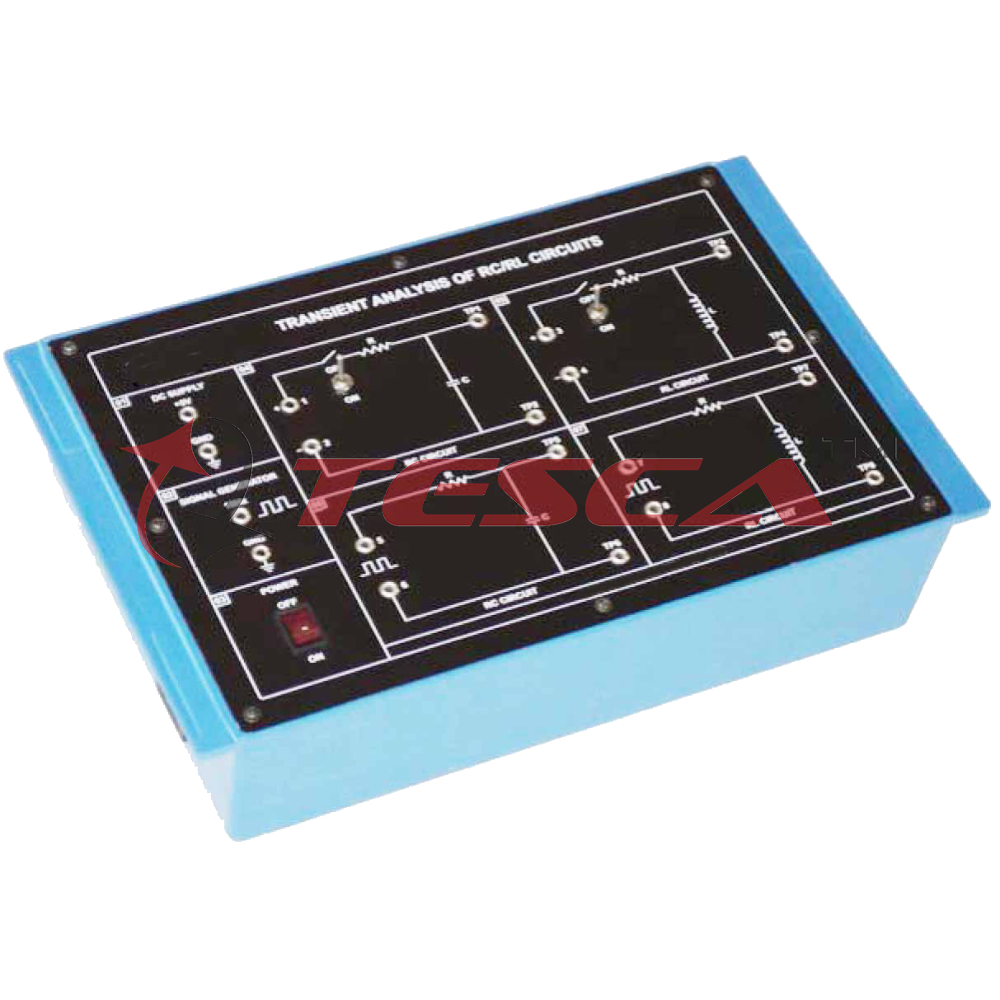

Transient Analysis of RC/RL Circuit

Order Code: 36333

Transient Analysis of RC/LC Circuits, 36333 has been designed specifically for the transient responce analysis with both DC and AC signals as input. This is useful for students to study and analyze the behavior of any circuit during the transient per...

SPECIFICATION

Transient Analysis of RC/LC Circuits, 36333 has been designed specifically for the transient responce analysis with both DC and AC signals as input. This is useful for students to study and analyze the behavior of any circuit during the transient period. The study of transient and steady state transient of a circuit is very important as they from the building block of most electrical circuits. With this product, we can easily calculate time constant of RC circuits theoretically and practically.

Object

Study the transient response of a series RC circuit and understand the time constant concept with DC power supply.
Study the transient response of a series RL circuit and understand the time constant concept with DC power supply.
Study the transient response of a series RC circuit and understand the time constant concept with square wave TTL.
Study the transient response of a series RL circuit and understand the time constant concept with square wave TTL.

Technical Specifications

Mains supply : 230V %uF0B110, 50Hz
DC power supply : 5V
Dimensions (mm) : W340 X H125 X D210
Weight : 1.1 KG (Approx)
