Transient Analysis oF RC-RL Circuits Experiments

Order Code: 21225000.8

Category: General Lab Equipment I

Experiments:- Study the Transient Response of a series RC circuit and Understand the time constant concept with DC power supply Study the Transient Response of a series RL circuit and Understand the time constant concept with DC power sup...



SPECIFICATION

Experiments:-

  • Study the Transient Response of a series RC circuit and Understand the time constant concept with
  • DC power supply
  • Study the Transient Response of a series RL circuit and Understand the time constant concept with
  • DC power supply
  • Study of Transient Response of RC/RL circuit with  signal generator

Setup Includes :-

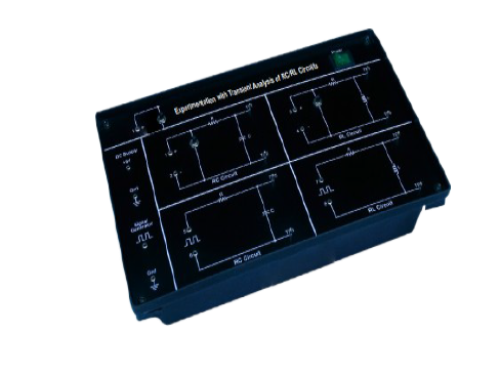

  • Experiment Trainer Board that Contains:-
  • 1.Power Supply : 5 V DC
  • 2.Signal Generator : 100 Hz
  • 3.Various test point
