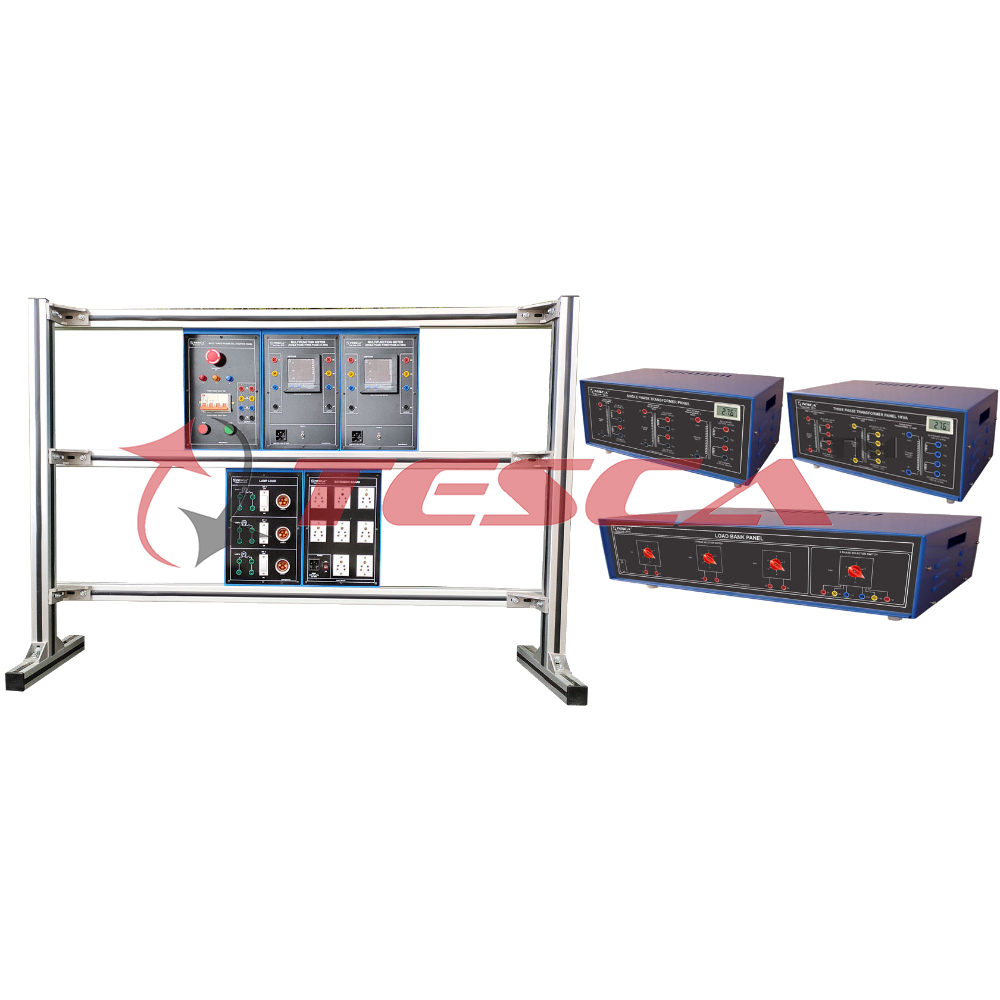

Transformer Trainer

Order Code: 22235818.1

Category: General Lab Equipment I

Models of power transmission lines with concentrated parameters  Voltage drop and losses in power transmission lines  Types of line (copper, aluminium)  Parallel of power transmission lines  Ideal transformer, real tran...



SPECIFICATION

  • Models of power transmission lines with concentrated parameters
  • Voltage drop and losses in power transmission lines
  • Types of line (copper, aluminium)
  • Parallel of power transmission lines
  • Ideal transformer, real transformer
  • No load, load and short-circuit tests of transformers, efficiency of a three-phase transformer
  • Star, delta, zigzag connections and time index of three-phase transformers
  • Protection devices of transformers,Main installed components: Line 1 Modifiable parameter: Section (capacity in A) Model of line used: PI
