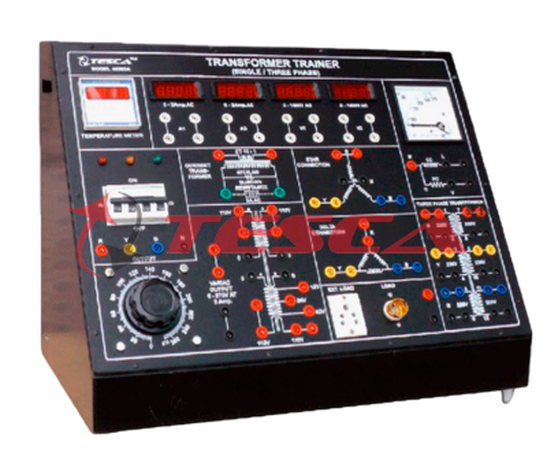

Transformer Trainer

Order Code: 22235997.11

Category: General Lab Equipment I

Experimental List Measuring Coil Resistance of Transformer Saturation curve and voltage ratio of Transformer Impedance of Transformer Current Ratio and Impedance of Transformer Voltage regulation curve of transformer Polarity of Trans...



SPECIFICATION

Experimental List

  • Measuring Coil Resistance of Transformer
  • Saturation curve and voltage ratio of Transformer
  • Impedance of Transformer
  • Current Ratio and Impedance of Transformer
  • Voltage regulation curve of transformer
  • Polarity of Transformer
  • The No-load experiment of a single phase Transformer
  • Short experiment of a single phase Transformer
  • Load experiment of a single phase Transformer
  • Parallel operation experiment of a single phase transformer
  • Three phase connection experiment of single phase transformer
  • V connection practice experiment of single phase transformer
  • The No-load experiment of a three phase transformer
  • Short experiment of a three phase Transformer
  • Load experiment of a three phase Transformer

Techanical Specifications

  • Control Board
  • 1Phase Transformer 300-400VA : 3EA
  • Primary : 0/110/220/380V
  • Secondary : 0 / 110 / 220 / 380V
  • AC Voltage Meter : 3EA
  • 150V : 2EA
  • 300V : 2EA
  • 600V : 2EA
  • AC Ampere Meter
  • 5A : 2EA
  • 10A : 2EA
  • 15A : 2EA
  • Circuit Protector : 5EA
  • MCCB 30AF, 10AT : 2 EA
  • Toggle Switch : 9 EA
  • Style : Steel, Potable Type
  • Dimension :800(W) 430(D) 560(H)mm
