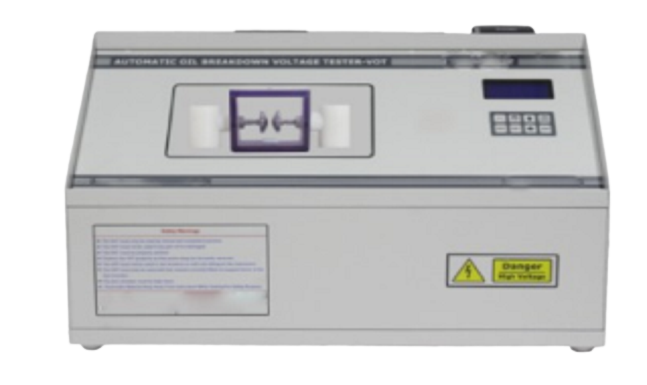

Transformer Oil Dielectric Strength Tester

Order Code: 22235807.1

Category: General Lab Equipment I

Technical Specification:- Power supply: AC220V±10%, 50Hz Output voltage: 0?100KV Capacity: 1.2 KVA Speed of pressure rise: about 2KV/S Voltage test precision: ±3% Breakdown sensitivity: <2KV Wave difference: ≤3% ...



SPECIFICATION

Technical Specification:-

  • Power supply: AC220V±10%, 50Hz
  • Output voltage: 0?100KV
  • Capacity: 1.2 KVA
  • Speed of pressure rise: about 2KV/S
  • Voltage test precision: ±3%
  • Breakdown sensitivity: <2KV
  • Wave difference: ≤3%
  • Time of breakdown: ≤10ms
  • Working condition: 0??40?, RH 85%

General information:-

  • The bidder must provide warranty of not less than one year.
  • The specification offered by a bidder must be from published document.
  • The brochure must support the specifications.
  • The bidder must provide installation, training and commissioning.
  • Service manual / Operation manual.
