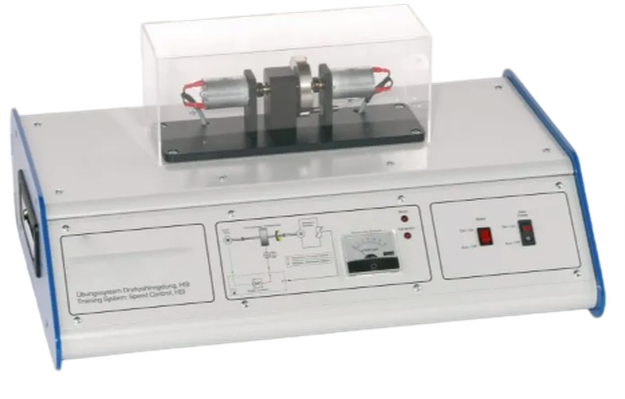

Training System: Speed Control, HIS

Order Code: 22235741.14

Category: General Lab Equipment II

The unit shall perform the following experiments and investigations:  Learning Objectives / Experiments  Fundamentals of control engineering based on the example of a speed control system with PT1 behaviour Open loop control respon...



SPECIFICATION

The unit shall perform the following experiments and investigations:
 Learning Objectives / Experiments

  • Fundamentals of control engineering based on the example of a speed control system with PT1 behaviour
  • Open loop control response
  • Effects of different controller parameters and methods on the response of the closed loop system
  • Recording of step responses
  • Reference variable
  • Disturbance variable
  • Controller optimisation
  • Software-based controlled system simulation
  • Comparison of different controlled system parameters Specification

 [1]   Experimental unit for control engineering experiments
 [2]   Speed control of a DC motor with shaft and flywheel
 [3]   Transparent protective cover for motor/generator set
 [4]   Inductive speed sensor
 [5]   Generation of disturbance variables by adjustable generator load
 [6]   Software-based controlled system simulation
 [7]   Process schematic on front panel
 [8]   Networkable software
 [9]   Software with control functions and data acquisition via USB under Windows 7, 8.1, 10including PC1 Computer_x0002_System with 21" TFT-Monitor          Win 10 engl.
Technical Data
Motor

  •  Max. speed: 4500min ^-1^
  •  Max. motor power output: 10W
  •  Max. torque: 1,7Ncm Generator
  •  Max. speed: 4500min ^-1^
  •  Max. power output: 10W
  •  Max. torque: 1,7Ncm Tachometer (analogue): 0...6000min ^-1^ Software controller configurable as P, PI and PID controller Software
  •  Process schematic with controller type selection (manual, continuous controller, programmer)
  •  Time functions
  •  Simulation function
  •  Disturbance variable input 230V, 50Hz, 1 phase 230V, 60Hz, 1 phase 120V, 60Hz, 1 phase UL/CSA optional Dimensions and  Weight LxWxH: 600x450x310mm Weight: approx. 18kg LxWxH: 600x450x310mm Weight: approx. 18kgThe unit shall perform the following experiments and investigations:
