Trainer Digital Logic Tutor

Order Code: 24258406.4

Category: General Lab Equipment V

Product Features: The Digital Trainer Kit 12 Bit (MI-D01-2) is an advanced learning platform designed to provide comprehensive resources for understanding basic, linear, and digital electronics. This multi-purpose mini lab includes a variety of bu...



SPECIFICATION

Product Features:

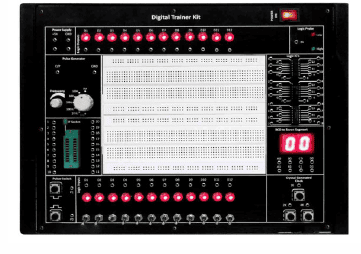

The Digital Trainer Kit 12 Bit (MI-D01-2) is an advanced learning platform designed to provide comprehensive resources for understanding basic, linear, and digital electronics. This multi-purpose mini lab includes a variety of built-in components, making it an excellent tool for learning and experimentation. Key features include:

  • On-board Fixed DC Power Supply:

    • +5V DC/1A with overload protection

  • BCD Display:

    • Two seven-segment BCD displays

  • On-board Pulser Switches:

    • Two push-to-on switches

  • Logic Data Input:

    • Toggle switches for logic level input with dual-color indication LEDs (16 pieces)

  • Logic Level Indicator:

    • Bi-color LEDs for logic level indication (16 pieces)

  • Crystal Generated Clock:

    • 1KHz, 2KHz, and 4KHz frequencies, with manual pulsing via a push-button switch

  • On-board Logic ICs:

    • 7404 (NOT gate)

    • 7408 (AND gate)

    • 7432 (OR gate)

  • On-board Logic Probe:

    • One logic probe included

  • Types of Connections:

    • Snap-fit connectors for easy connectivity

  • PCB:

    • Bare board tested glass epoxy SMOBC PCB

  • On-board Fixed Clock Generator:

    • Frequency range: 1Hz to 1MHz in seven steps

  • ZIF Socket:

    • Universal ZIF socket for ICs up to 20 pins (no soldering required)

  • Breadboard:

    • Two breadboards (tie points: 840, size: 172.5mm x 128.5mm)

  • Connectivity:

    • Snap-fit 2mm banana sockets for connection

Electrical and Mechanical Specifications:

  • Cabinet/Case: Attractive ABS plastic case

  • Power ON Switch: Includes an indicator and fuse for protection

  • Input Line Voltage: 230V AC ± 10%, 50Hz

  • Experiment Manual: Available in both hardcopy and softcopy formats

Installation and Commissioning:

  • Installation Deadline: Installation and commissioning must be completed within one month from the date of delivery, at no additional cost to the polytechnic.

  • Completion Requirement: All installation and commissioning tasks must be finalized before training at the site can take place.

Training at Site:

  • Duration: Minimum of 2 days

  • Number of Participants: At least 5 persons, nominated by the institution

  • Training Objective: Trainees should be able to operate and run all the equipment and experiments. Note: The training at the site is separate from the installation and commissioning of the equipment.

Warranty:

  • Warranty Period: Minimum 3 years, inclusive of parts and labor/after-sales service

  • Start Date: The warranty will commence from the date of successful completion of installation, commissioning, and handover.
