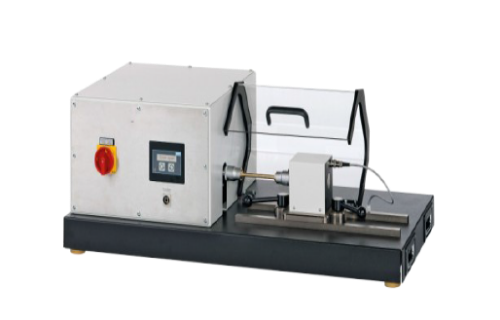

Torsion Test 200Nm, Motor Drive

Order Code: 21224591.1.39

Category: General Lab Equipment II

Motor-supported torsion tests with different metallic specimens to fracture Generate the twisting moment by means of worm gear motor; adjustable torsion rates, forward and reverse Worm gear motor, speed controlled by frequency converter(Worm g...



SPECIFICATION

  • Motor-supported torsion tests with different metallic specimens to fracture
  • Generate the twisting moment by means of worm gear motor; adjustable torsion rates, forward and reverse
  • Worm gear motor, speed controlled by frequency converter(Worm gear motor,  max. twisting moment= 200Nm,torsional velocities= 50, 100, 200, 500°/min,  frequency converter with 4 fixed speeds, motor output= 0.12kW, forward and reverse)
  • Specimens: steel, aluminium, brass(Specimens,  diameter= 9mm, length= 100mm, 3x steel,  3x aluminium,  3x brass,  specimen holder= 2x19mm, hexagonal,  possible specimen lengths: max. 300mm)
  • Measure the test moment by means of strain-gauge measuring shaft(twisting moment: 0...199,9Nm,  angle of twist= 0...±3200°, resolution= 0.1°
  • 230V, 50Hz, 1 phase, 230V, 60Hz, 1 phase; 120V, 60Hz, 1 phase UL/CSA optional)
  • Twisting angle measured by incremental encoder
  • Measured values displayed and controlled via touch panel
  • Microprocessor-based measuring technology
  • Software for data acquisition via USB under Windows 7, 8.1, 10
  • Dimensions and Weight LxWxH: 1120x550x380mm
  • Weight: approx. 95kg
