To study the characteristics of a Series RC Circuit
Order Code: 23246934.127
Category: General Lab Equipment III
Transient Analysis of RC/LC Circuits, 36333 has been designed specifically for the transient responce analysis with both DC and AC signals as input. This is useful for students to study and analyze the behavior of any circuit during the transient per...
SPECIFICATION

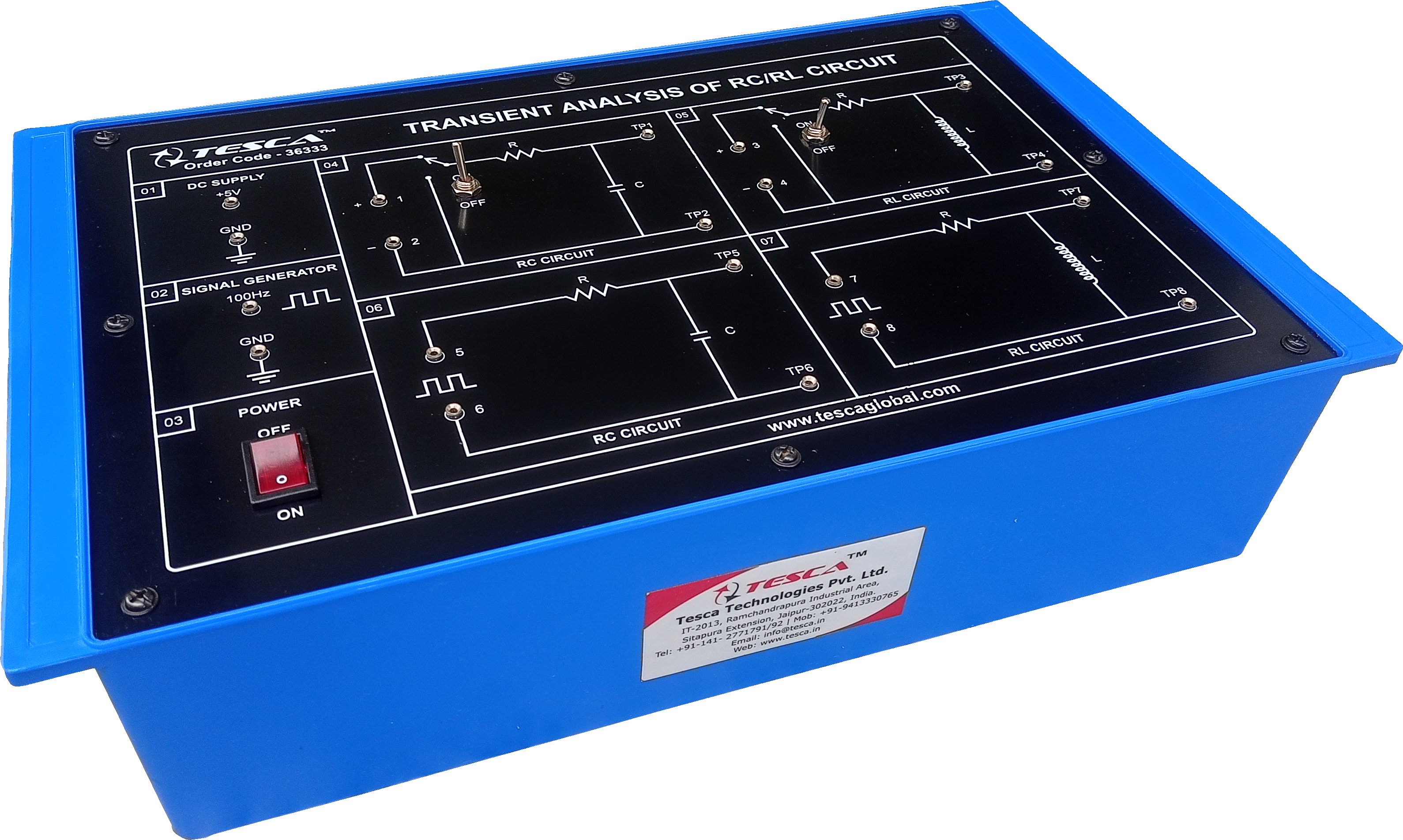

Transient Analysis of RC/LC Circuits, 36333 has been designed specifically for the transient responce analysis with both DC and AC signals as input. This is useful for students to study and analyze the behavior of any circuit during the transient period. The study of transient and steady state transient of a circuit is very important as they from the building block of most electrical circuits. With this product, we can easily calculate time constant of RC circuits theoretically and practically.
Object
- Study the transient response of a series RC circuit and understand the time constant concept with DC power supply.
- Study the transient response of a series RL circuit and understand the time constant concept with DC power supply.
- Study the transient response of a series RC circuit and understand the time constant concept with square wave TTL.
- Study the transient response of a series RL circuit and understand the time constant concept with square wave TTL.
Features
- Easy experimental illustration of transient analysis of RC and RL circuits.
- Built-in +5V DC power supply.
- Built-in signal generator
Technical Specifications
- Mains supply:230V ±10, 50Hz
- DC power supply:+5V
- Dimensions (mm):W340 X H125×D210
- Weight:1.1 KG (Approx)
List of Accessories
- Patch cord 50cm - 4mm Red........................... 01
- Patch cord 50cm - 4 mm Black.........................01
Other Apparatus Required
- Digital Storage Oscilloscope
Enquiry Form
