To determine an unknown Low Resistance using Potentiometer

Order Code: 23246934.128

Category: General Lab Equipment III

55711 Experimental Set Up has been designed specifically for comparison of two small resistances by using a Potentiometer.The set up is absolutely self contained and requires no other apparatus. Practical experience on this set up carries great ed...



SPECIFICATION

55711 Experimental Set Up has been designed specifically for comparison of two small resistances by using a Potentiometer.The set up is absolutely self contained and requires no other apparatus.

Practical experience on this set up carries great educative value for Science and Engineering Students.



OBJECT

01 To compare two small resistances by using Potentiometer.



FEATURES

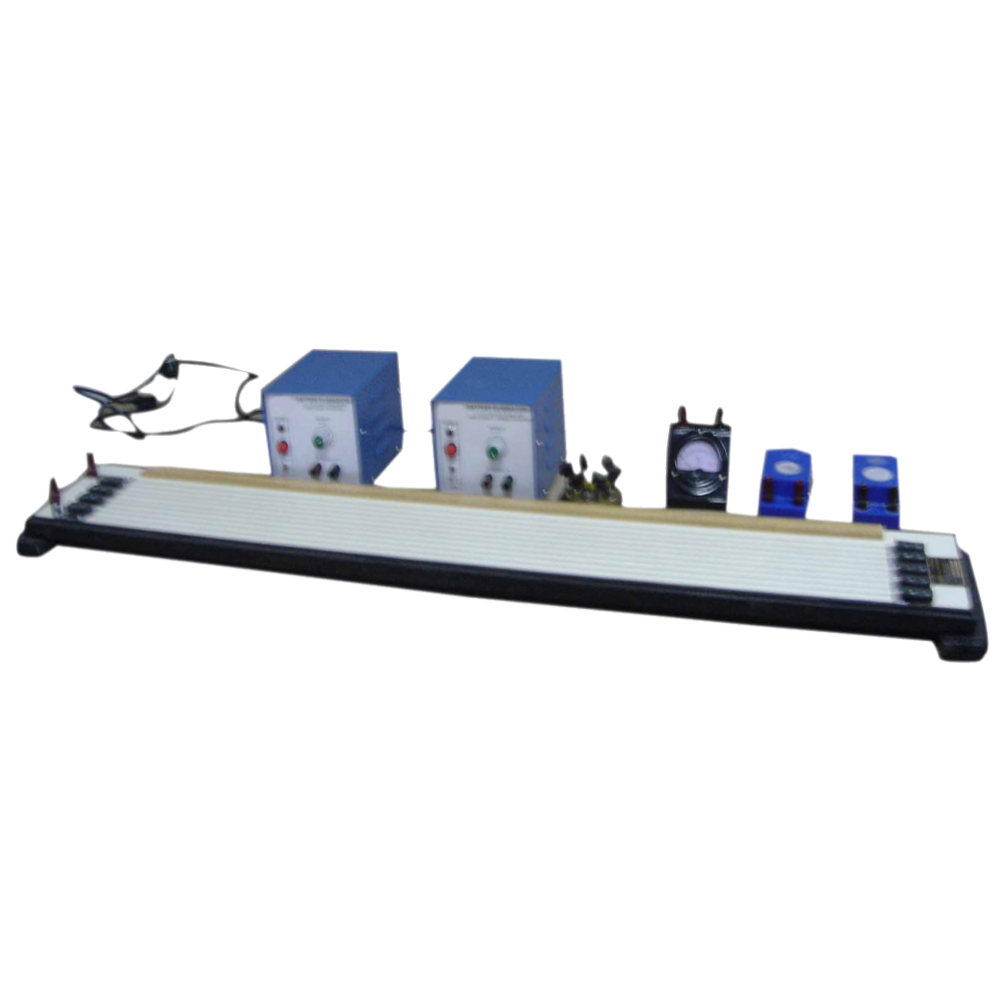

The Set up consists of the following :
01 Potentiometer 10 wires, Fitted with pulleys on laminated board, Piano type jockey with ten contact points.
02 Resistances 5 ohms/10W and 6 ohms/10W.
03 Galvanometer 30-0-30G (with push button controlled shunt).
04 Six way key.
05 Two, 0-5V D.C. at 500mA, continuously variable regulated and short circuit protected Battery Eliminators.
06 Weight : 10 Kg. (Approx.)
07 Adequate no. of connecting wires, 100cm long.
08 Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
