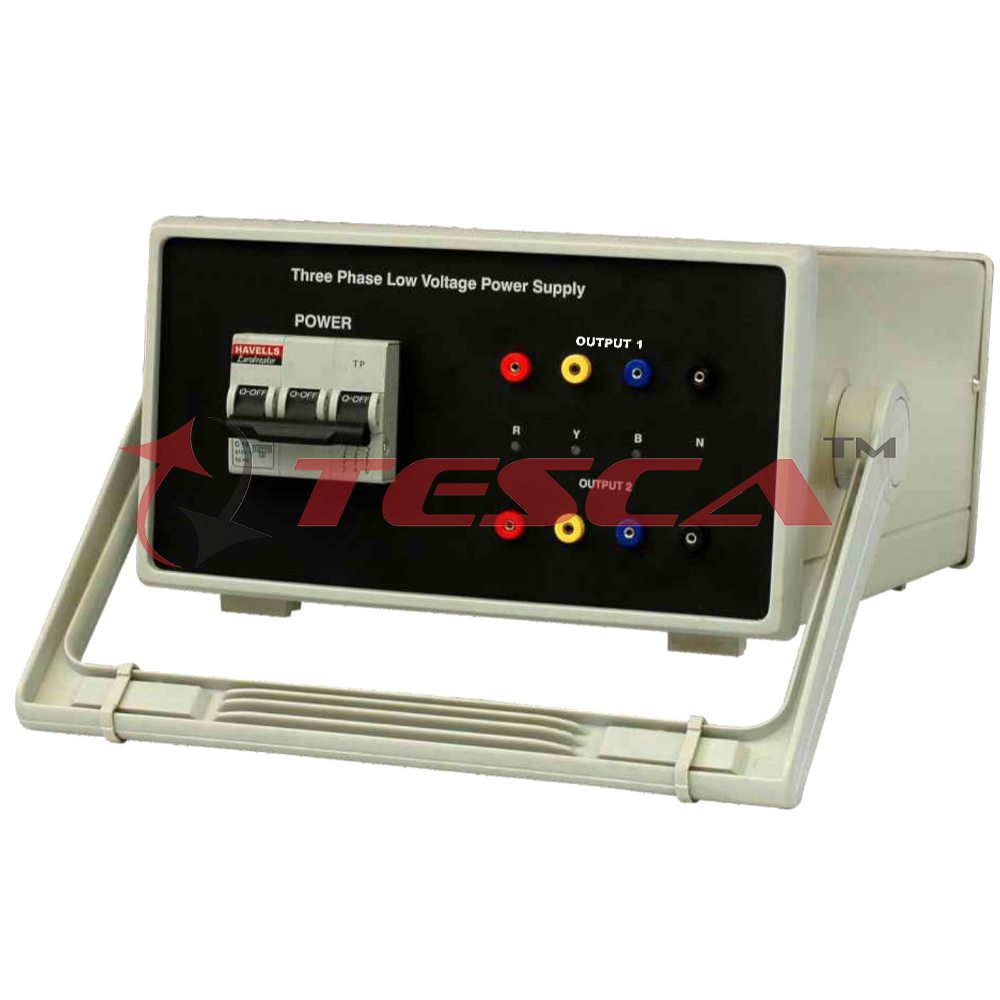

Three Phase Low Voltage Power Supply

Order Code: 46621

Category: Electrical Machine Lab

46621 Three Phase Low Voltage Power Supply is an elite training system for the electrical laboratories. The 46621 is a three phase low voltage supply that provides 18V of low voltage which is highly safe. This system is valuable in understa...



SPECIFICATION

46621 Three Phase Low Voltage Power Supply is an elite training system for the electrical laboratories. The 46621 is a three phase low voltage supply that provides 18V of low voltage which is highly safe. This system is valuable in understanding the basic concepts of Three phase circuits

Features
  1. Low Cost
  2. Provided with two nos. synchronized three phase output
  3. Easy to Operate
  4. Designed by considering all the safety standards
  5. Eqipped with supply indicators
  6. Learning material CD
  7. 2 Year Warranty

Technical Specifications
  • Mains Supply : Three Phase
  • 415V ±10%, 50Hz
  • Outputs : 18V Phase Voltage
  • 28V ±10% Line Voltage 50Hz
  • MCB : 10A
  • Dimension (mm) : W 262 x D 316 x H 130
  • Weight : 8kg (approximate)
