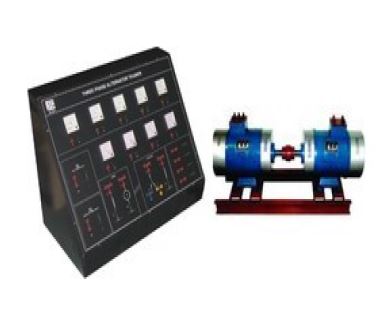

Three Phase Alternator Trainer

Order Code: 19204149.21

Category: General Lab Equipment III

Dc Power Supply Input Mains:230V AC, 50Hz Fixed DC Output :200V Variable Dc :0-200V Machine Specification(2 nos) Both the machines are flexibly coupled and mounted on a M.S Channels DC machine (acts as the prime mover) Type:Sh...



SPECIFICATION

  • Dc Power Supply
  • Input Mains:230V AC, 50Hz
  • Fixed DC Output :200V
  • Variable Dc :0-200V
  • Machine Specification(2 nos)
  • Both the machines are flexibly coupled and mounted on a M.S Channels

DC machine (acts as the prime mover)

  • Type:Shunt
  • Rating:2 HP
  • Voltage Rating:200V
  • Speed:1500RPM(No Load)
  • Insulation:class ‘B’

Three Phase Alternator(acts as Generator)

  • Rating:3HP
  • Voltage rating:415+/-10%
  • Speed:1500RPM(No load)
  • Insulation:Class ‘B’
  • Excitation Voltage:120V

Used Analog meters

  • DC Voltmeter (MC):300V
  • DC Ammeter(MC):10A,1A
  • AC Ammeter(MI):10A
  • AC Voltmeter(MI):500V(2Nos.)
  • Weight approximately:17.5 Kg (control panel)
  • generator set : approximately 106 Kg machine
  • Brochure from the manufacturer
