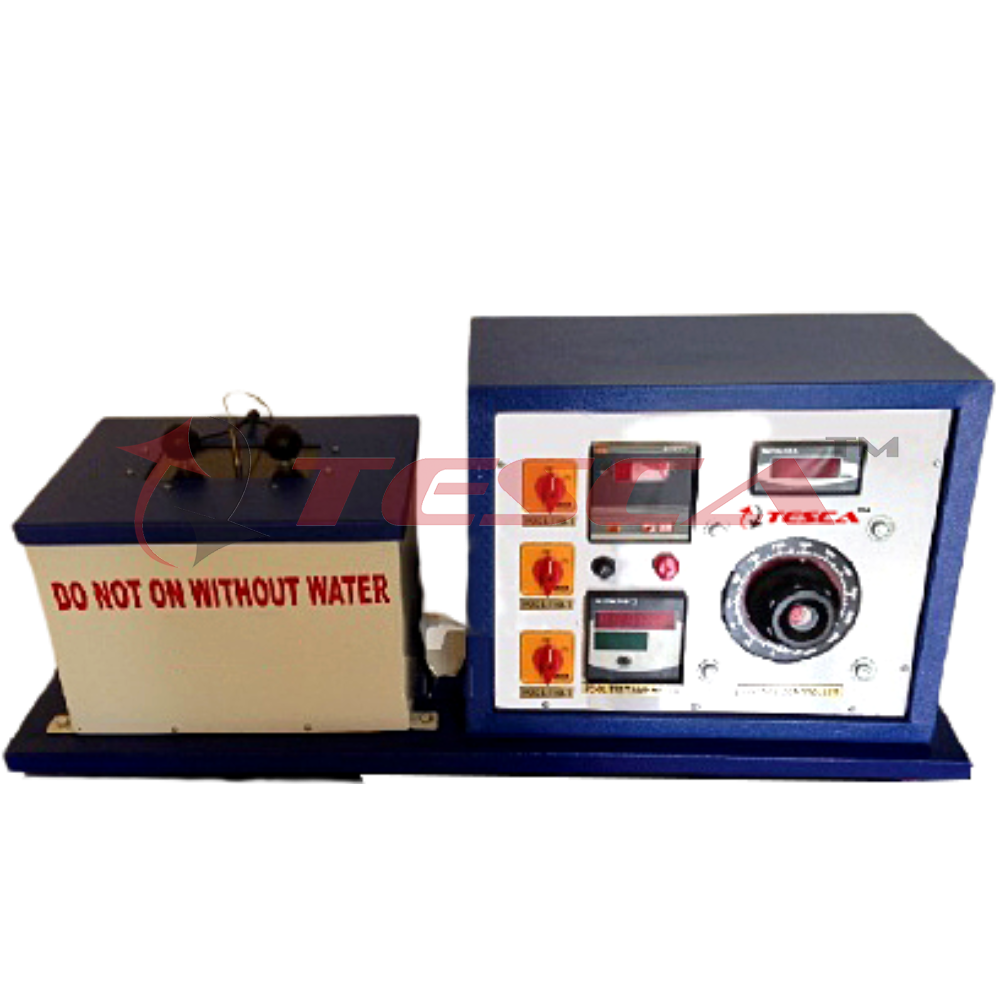

Thermocouple Calibration Test Rig

Order Code: 29520

Category: Heat Transfer Lab

The Unit helps in calibrating given thermocouple for the range 0°C to 100°C. While calibrating, thermocouple is once dipped in ice for 0Q C and then in boiling water for 100°C. This is done till the thermocouple shows the actual temperatu...



SPECIFICATION

The Unit helps in calibrating given thermocouple for the range 0°C to 100°C. While calibrating, thermocouple is once dipped in ice for 0Q C and then in boiling water for 100°C. This is done till the thermocouple shows the actual temperature of ice (0° C) and boiling wafer (100°C) and a linear calibration is set. A mV meter is provided to know the corresponding voltage.

SPECIFICATIONS:
1. A digital mV Meter and a digital temperature indicator with 2 different type of thermocouples.
2. A water container with heater of 1 KW. 3.A technical manual accompanies the unit.

SERVICES REQUIRED:
1. Table surface area - 2 m X 1 m X 0.5 m height.
2. 220V, 50hz. Stabilize Electric Power Supply.
3. Ice cubes - 0.5Kg. Approx.
