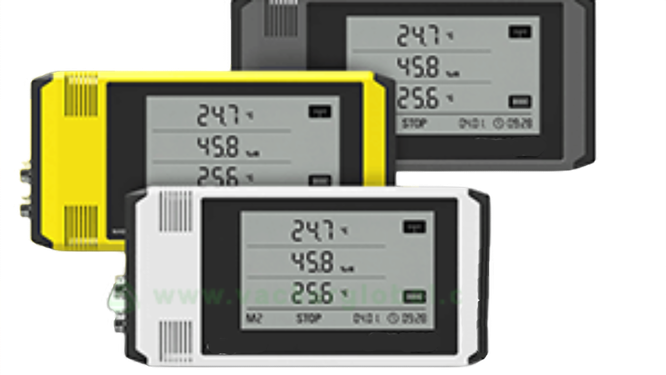

Temperature Relative Humidity And Barometric Pressure Logger

Order Code: 22236145.3

Category: General Lab Equipment II

Operating range Temperature: - (minus)40 to +85 °C Relative humidity: 0-100% Barometric pressure: 300-1200 mbar Dedicated port for battery replacement Capability to store at least 50,000 data ponts Accuracy Temperature: &pl...



SPECIFICATION

Operating range

  • Temperature: - (minus)40 to +85 °C
  • Relative humidity: 0-100%
  • Barometric pressure: 300-1200 mbar
  • Dedicated port for battery replacement Capability to store at least 50,000 data ponts

Accuracy

  • Temperature: ±0.2 °C typical and ±0.4 °C maximum
  • Relative humidity: ±2% typical and ±3% maximum (non-condensing)
  • Barometric pressure: ± 1 mbar

Resolution

  • Temperature: 0.01 °C
  • Relative humidity: 0.01%
  • Barometric pressure: ±0.01 mbar

Repeatability

  • Temperature: ±0.1 °C
  • Relative humidity: ±0.1%
  • Maximum Sampling Rate: 60 s (software programmable to different rate)
  • Dimensions: 20 mm X 55 mm X 47 mm

Document

  • Manufacturers Authorization Letter Submitted
  • Related Certificate Submitted
  • Catalog Submitted
  • Installation, Testing, and Commissioning, mandatory Training  (with training manual and software for each experiment)
  • And Training performed by qualified and experienced engineers including required raw materials at bidder own cost
  • Warranty: 01 year warranty with service
