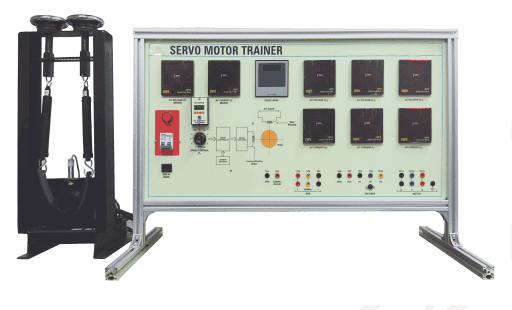

Minimum Equipment Configuration:

a) Teaching Station:

• Constructed using aluminum profiles

• Dimensions: Width 600–700 mm, Depth 300–400 mm, Height 400–500 mm

• Structure includes:

  • Horizontal section for servo drive

  • Vertical section for PLC

  • Handles for portability

  • Equipped with TH-35 rails and mounting trough

  • Designed for tabletop use

b) Industrial PLC Unit:

• Minimum Specifications:

  • 14 digital inputs

  • 10 digital outputs

  • 2 analog inputs (0–10 V)

  • 2 analog outputs (4–20 mA)

  • Operates on 24 V DC

  • Ethernet programming support

  • Supports PID control

  • Capable of controlling stepper motors

  • 2 high-speed counters (≥100 kHz)

  • 2 high-speed outputs (≥100 kHz)

• Expandability:

  • At least 3 communication modules

  • At least 1 signal board

  • At least 8 I/O modules

c) Communication Cable:

• 1x Ethernet cable, minimum 1.5 meters in length

d) PLC Utility Software:

• Single-user educational license

• Includes PLC simulator

• Supported programming languages:

  • Ladder Diagram (LD)

  • Function Block Diagram (FBD)

  • Structured Control Language (SCL)

e) Power System:

• 24 V DC power supply

• Main station power switch

• Residual Current Circuit Breaker (RCCB): B 10A, 30mA

f) Servo System:

• Servo Drive:

  • Minimum 400W, 230V AC

• Servo Controller:

  • Matched to the drive

  • Includes all necessary cables and connectors

• Servo Protection Cover: Made of Plexiglas

g) Signal Transmission:

• 0–10V signal transmitter

• Mounted on TH-35 rail

h) Operator Controls:

• Minimum Control Elements:

  • 1x Start/Stop push button with backlight

  • 1x Emergency Stop Mushroom button

  • 1x 0-1 Selector switch

  • 1x Yellow push button with backlight

i) Electrical Connections:

• Spring-loaded, screwless terminal strips

• Power cord: Minimum 2 meters

j) Documentation:

• User manual

• Teaching materials including exercises

k) Power Supply for Workstation:

• 230V AC, 50 Hz
