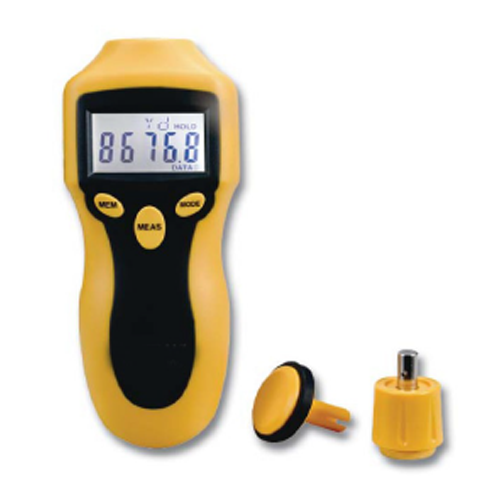

TACHO METER

Order Code: 18193739.10

Category: General Lab Equipment IV

Measurement range for velocity 5 to 99,999 rpm (optical) 0.5 to 19,999 rpm (contact) 0.05 to 1,999 m/mi(contact) 0.2 to 6,560 ft/min (contact) Resolution 0.5 to 999.9 = 0.1 rpm; up to 99,999 = 1.0 rpm (optical) 0.5 to 999.9 = 0.1 rpm; ...



SPECIFICATION

  • Measurement range for velocity 5 to 99,999 rpm (optical)
  • 0.5 to 19,999 rpm (contact)
  • 0.05 to 1,999 m/mi(contact)
  • 0.2 to 6,560 ft/min (contact)
  • Resolution 0.5 to 999.9 = 0.1 rpm;
  • up to 99,999 = 1.0 rpm (optical)
  • 0.5 to 999.9 = 0.1 rpm;
  • up to 19,999 = 1.0 rpm (contact)
  • 0.05 to 99.99 = 0.01 m/min;
  • up to 1,999 = 0.1m/min (contact)
  • 0.2 to 999.9 = 0.1 ft/min;
  • up to 6,560 = 1 ft/min (contact)
  • Accuracy±0.05% of reading; ±1 digit
  • Maximum distance for optical measurements :300mm
  • Memory : last value, maximum and minimum value
  • Power 4 AA batteries
  • Operating temperature :0 to 50°C
  • Enclosure  :ABS plastic
  • Display : 5 digit LCD, turns automatically depending on the type of measurement
  • Dimensions : 65 x 215 x 38mm
  • Weight :300g
  • Contents
  • 1 x PCE-T236 tachometer, 1 x conical adaptor, 1 x motion wheel adaptor, 1 x surface wheel, 1 x reflective tape, 1 x carrying case and user's manual
  • Accessory - Roll of reflective tape (5m)
