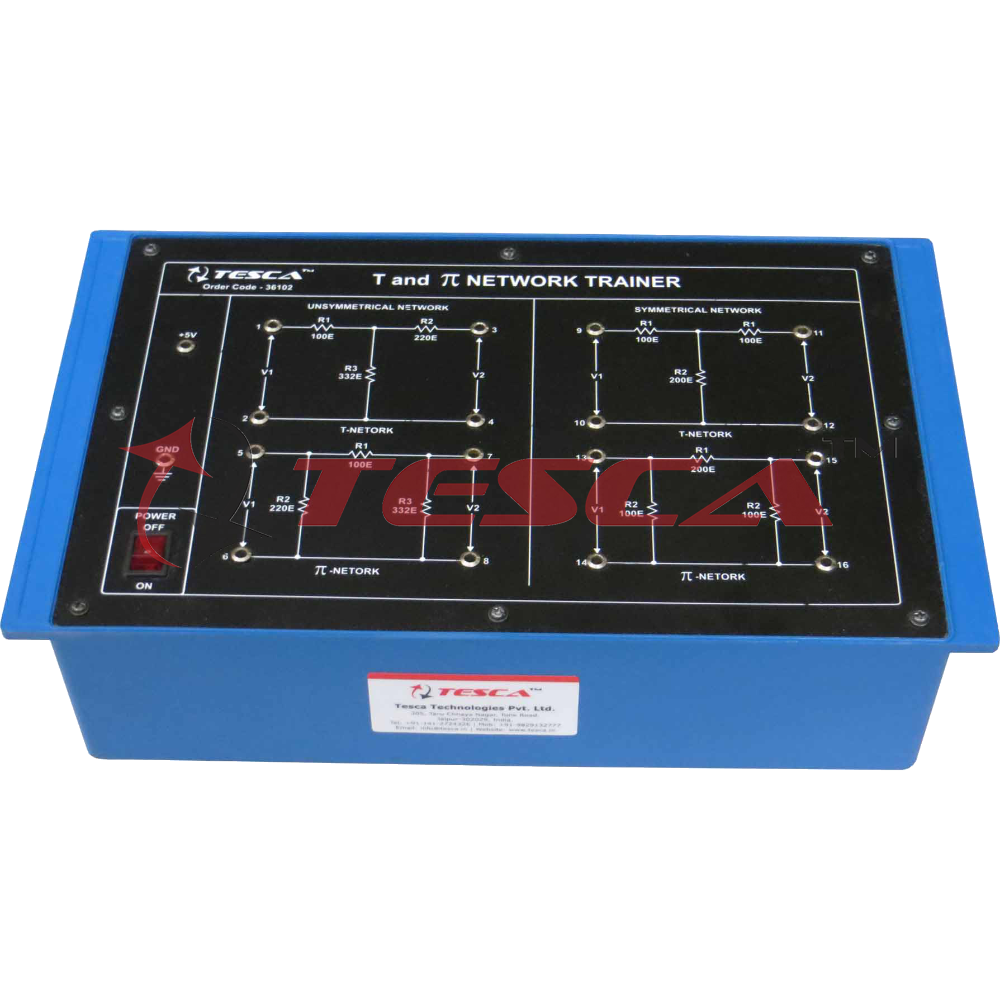

T and Pie Network Trainer
Order Code: 36102
Category: Analog Electronics Trainers
T and p Network Trainer has been exclusively and attractive designed to demonstrate the significance of image and characteristic impedance of T and p-network. It can be used as a stand alone unit with inbuilt DC power supply. Various scope of learnin
SPECIFICATION
T and p Network Trainer has been exclusively and attractive designed to demonstrate the significance of image and characteristic impedance of T and p-network. It can be used as a stand alone unit with inbuilt DC power supply. Various scope of learning makes the subject understanding complete.
This trainer includes not only the experimental calculation of image and characteristic impedance but also verifies it by comparing the theoretical values under T and p-networks in a sequential manner. With this, students can learn about importance of Symmetrical and Unsymmetrical networks.
Experiment:
01. Study and verification of Image Impedance of Unsymmetrical T-Network
02. Study and verification of Image Impedance of Unsymmetrical p-Network
03. Study and verification of Characteristic Impedance of Symmetrical T-Network
04. Study and verification of Characteristic Impedance of Symmetrical p-Network
Technical Specifications
01. Mains Supply : 230 V ±10%, 50 Hz
02. DC Power Supply : 5 V, 150 mA
