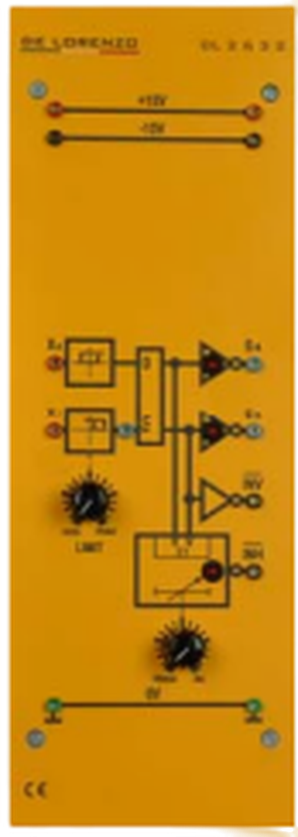

Switching logic

Order Code: 22236235.47

Category: General Lab Equipment II

Input Xn for torque comparator (speed set point value) Input Xi for current comparator with adjustable limit threshold Output SA and SB for the corresponding inputs of the trigger pulse switch with led indication of the active converter ...



SPECIFICATION

  • Input Xn for torque comparator (speed set point value)
  • Input Xi for current comparator with adjustable limit threshold
  • Output SA and SB for the corresponding inputs of the trigger pulse switch with led indication of the active converter
  • Output INV for the corresponding inverting input of the absolute value generator
  • Output INH for the corresponding inhibit input of the two pulse control unit, with adjustable delay time from 10 ms to 2 s and led indication of the commutating time
  • Current comparator output C for EXT selection input of the active elements of the adaptive PI controller
  • Power supply: +15 V/0 V/?15 V
