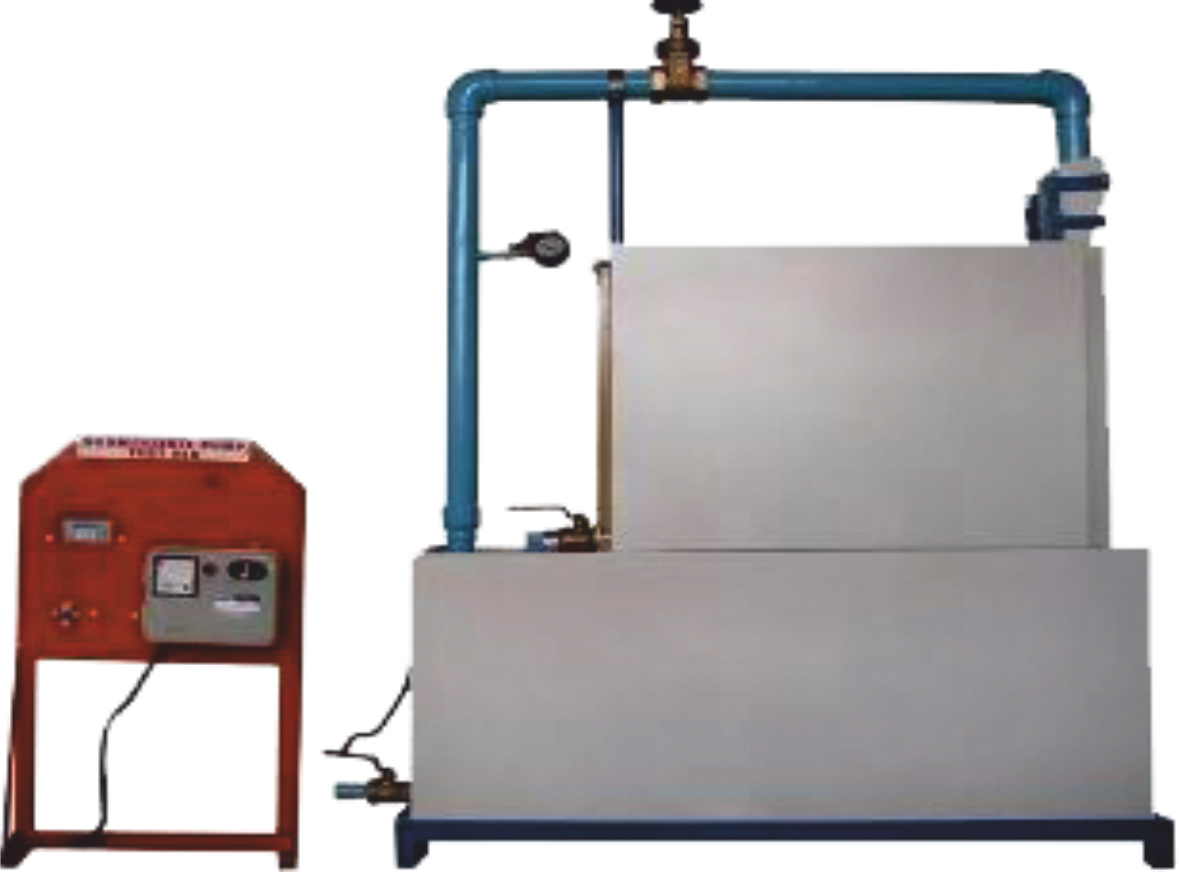

Submersible Pump Test Rig

Order Code: 14095

Category: Fluid Machinery Lab

Introduction: The present Submersible Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Submersible Pump, which is mounted horizontally with sump tank. Flow of fluid is measured b...



SPECIFICATION

Introduction: The present Submersible Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Submersible Pump, which is mounted horizontally with sump tank. Flow of fluid is measured by using measuring tank and stop watch.




Specifications: Pump : Submersible, Capacity 1 HP.Medium Flow : Clear Water.Sump Tank : Capacity 120 Ltrs.Flow Measurement : Using Measuring Tank (Capacity 90 Ltrs.) & Electronic Stop WatchPressure Gauge : Bourdon type The whole set-up is well designed and arranged in a good quality painted structure.
