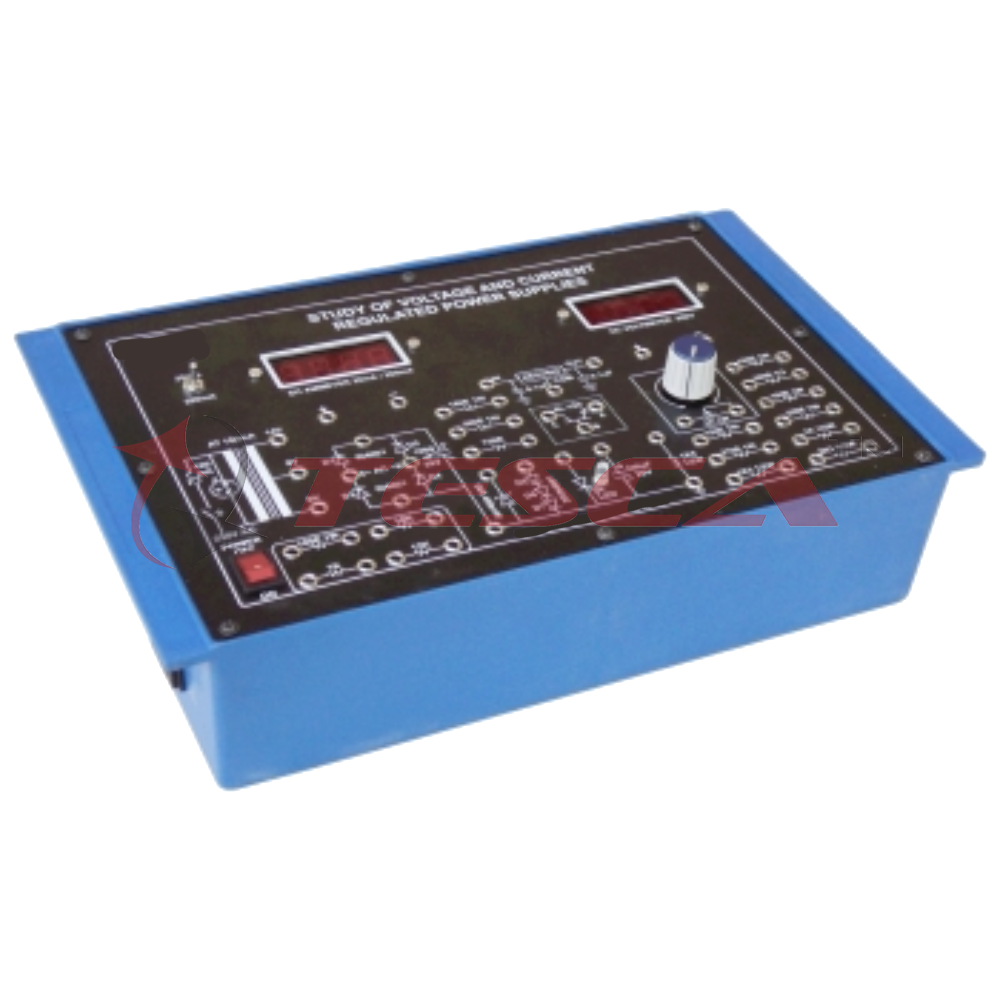

Study of Voltage and Current Regulated Power Supplies (C.R.)

Order Code: 36204

Category: Analog Electronics Trainers

Experimental Training Board has been designed specifically for the study of difference between Voltage Regulated and Current Regulated Power Supplies. Certain basic circuits used in such supplies can be assembled and studied on this training boa...



SPECIFICATION

Experimental Training Board has been designed specifically for the study of difference between Voltage Regulated and Current Regulated Power Supplies. Certain basic circuits used in such supplies can be assembled and studied on this training board. The board is absolutely self contained and requires no other apparatus.
Practical experience on this board carries great educative value for Science and Engineering Students.

Object:
01. To study a zener diode voltage regulator.
02. To study a series pass transistors voltage regulator.
03. To study an IC voltage regulator.
04. To study a transistor current regulator employing one of the following devices :
(a) Zener Diode
(b) Silicon Diodes
(c) LED
05. To study an IC current regulator.

Features:
The board consists of following built-in parts :
01. Mains transformer with tappings for 0,9 and 14VA.C. at 150mA.
02. D.C. Milliammeter, 65mm rectangular dial, having three ranges 1mA, 10mA, 100mA selected by switch.
03. D.C. Voltmeter, 65mm rectangular dial to read 0-30V.
04. Voltage Regulator.
05. NPN Transistor.
06. Zener Diode.
07. Adequate no. of other electronic components.
08. Mains ON/OFF switch, Fuse and Jewel light.
* The unit is operative on 230V ±10% at 50Hz A.C. Mains.
* Adequate no. of patch cords stackable from rear both ends 2mm spring loaded plug length ½ metre.
* Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
* Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
