Study of Various Module Counters
Order Code: 38627
Category: Digital Electronics Trainers

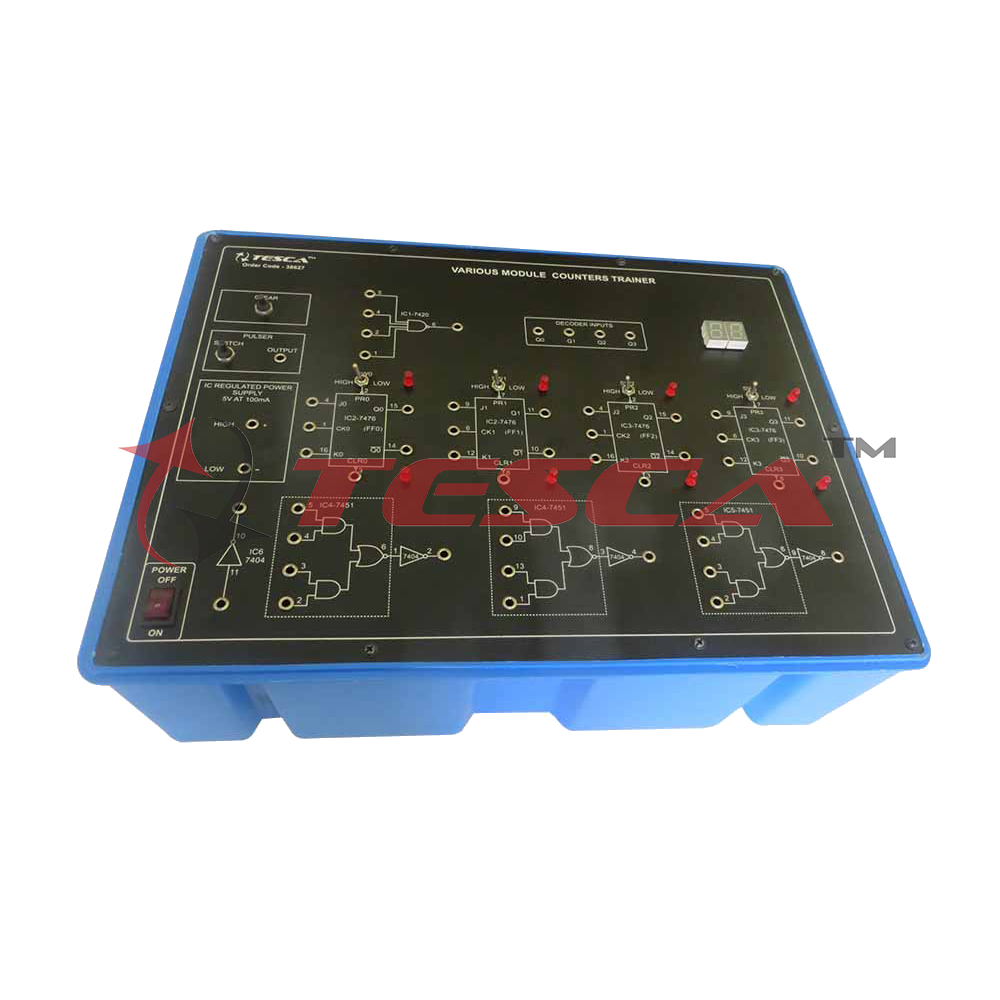

Computer Logic Training Board has been designed specifically to study Various Modulo Counters. This Training Board gives a better understanding of the design, working & practical aspects of counters. Gates and flip-flops can be used to const...
SPECIFICATION
Practical experience on this board carries great educative value for Science and Engineering Students.
Object:
To construct & study the following Modulo Counters :
- Fixed Modulo 4 bit Binary Ripple Counter in :
- Count-Up mode.
- Count-Down mode.
- Count-Up/Down mode
- Four stage Ring Counter.
- Variable Modulo Counters.
Features:
The board consists of the following built-in parts :
- 5V D.C. at 100mA, IC Regulated Power Supply.
- Four master slave J-K flip-flops with preset and clear terminals.
- Three, 2-input AND-OR gate combinations.
- One inverter (NOT gate).
- 4-input NAND gate.
- Completely programmable panel to make any type of counter.
- Switches for logic selection.
- LEDs for visual indication of output of each flip-flop.
- Seven segment display with decoder circuit to display the output in decimal code.
- One pulser switch for clock & one press switch for clear.
- Adequate no. of other Electronic Components.
- Mains ON/OFF switch, Fuse and Jewel light.
- The unit is operative on 230V ±10% at 50Hz A.C. Mains.
- Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre.
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms.
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
