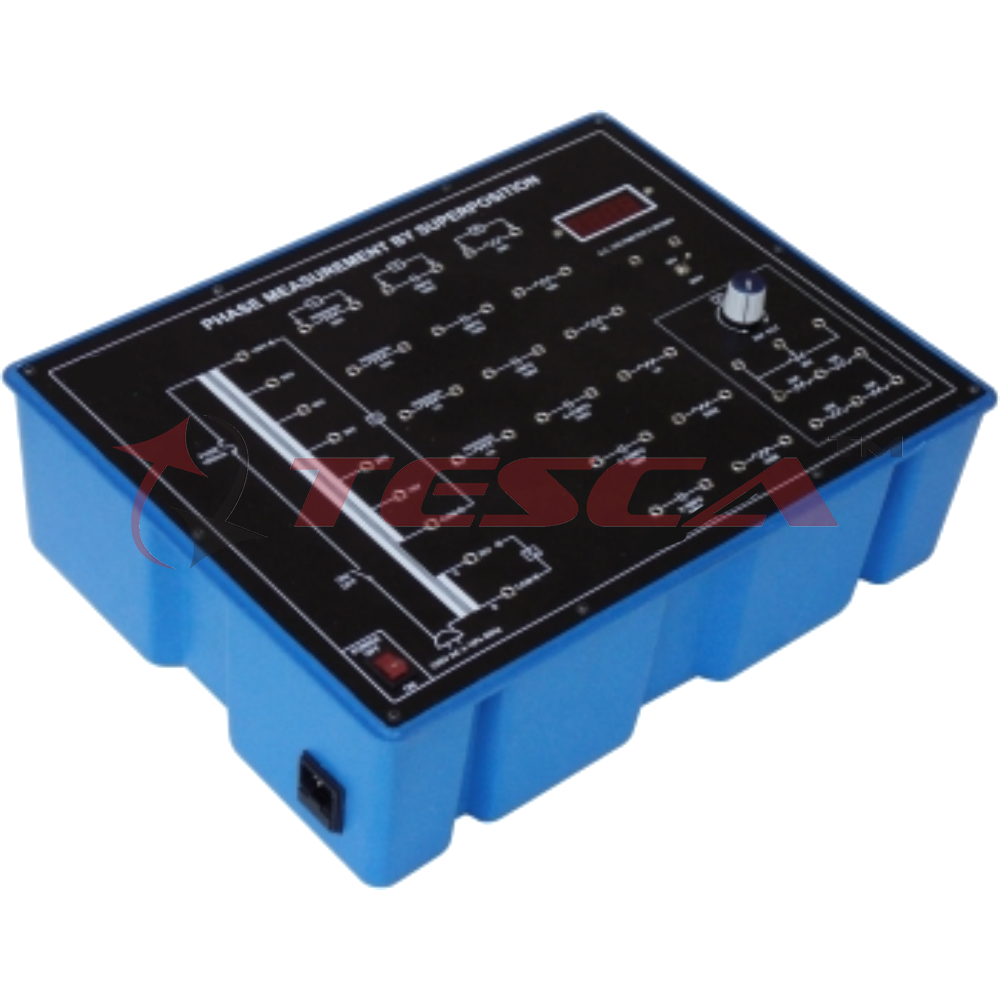

Study of Phase measurement by super position with power supply and 1 multi range meter (C.R.)

Order Code: 36258

Category: Analog Electronics Trainers

Experimental Training Board has been specifically designed for measurement of relative phase difference by superposition. The board is absolutely self contained and requires no other apparatus. Practical experience on this board carries great e...



SPECIFICATION

Experimental Training Board has been specifically designed for measurement of relative phase difference by superposition. The board is absolutely self contained and requires no other apparatus.
Practical experience on this board carries great educative value for Science and Engineering Students.

Object:
Study of phase measurement by superposition :
01. To study the relative phase difference between voltage across resistors and capacitors in series.
02. To measure the phase difference between V and V in a simple RC circuit. R C
03. To study more about phase relationship in an RC network.
04. To study the phase relationship in an LR circuit.
05. To study the phase of V in an LCR circuit. R
06. To study the phase relationships amongst various voltages in an LCR circuit.

Features:
The board consists of the following built-in parts:
01. Mains transformer having secondary tappings of 10V, 20V, 30V, 40V, 50V, 100 Volts at 100mA.
02. One Digital Panel Meter having dual range of 20V and 200V.
03. Four Inductors and adequate no. of other electronic components.
04. Mains ON/OFF switch, Fuse and Jewel light.
* The unit is operative on 230V ±10% at 50Hz A.C. Mains.
* Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre.
* Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms.
* Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
