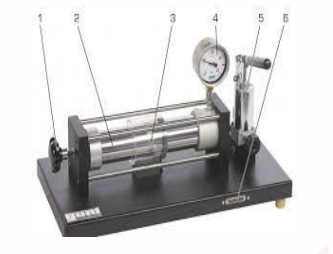

Stress and strain analysis on a thin-walled cylinder
Order Code: 24257481.4
Category: General Lab Equipment V
Aluminum vessel length: 400mm diameter: Ø=75mm wall thickness: 2,8mm internal pressure: max. 3,5N/mm2 (35bar) Strain gauge application 5 strain gauges: half-bridges, 350 Ohm angular position to the vessel axis: 0°, 30...
SPECIFICATION
- Aluminum vessel
- length: 400mm
- diameter: Ø=75mm
- wall thickness: 2,8mm
- internal pressure: max. 3,5N/mm2 (35bar)
- Strain gauge application
- 5 strain gauges: half-bridges, 350 Ohm
- angular position to the vessel axis: 0°, 30°, 45°, 60°, 90°
- gauge factor: 2,00 ±1%
- power supply: 10V
- Manometer
- 0…40bar
- accuracy: class 1,0
