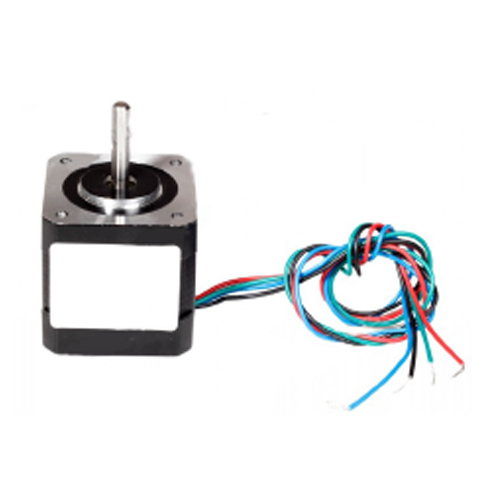

Steper motor

Order Code: 181937152.111

Category: General Lab Equipment IV

Hybrid bipolar stepping motor, Size: 42.3 mm square × 38 mm, Not including the shaft (NEMA 17), Weight: 285 g (10 oz), Shaft diameter: 5 mm “D”, Steps per revolution: 200, Current rating: 1.68 A per coil, Voltage r...



SPECIFICATION

  • Hybrid bipolar stepping motor,
  • Size: 42.3 mm square × 38 mm,
  • Not including the shaft (NEMA 17),
  • Weight: 285 g (10 oz),
  • Shaft diameter: 5 mm “D”,
  • Steps per revolution: 200,
  • Current rating: 1.68 A per coil,
  • Voltage rating: 2.8 V,
  • Resistance: 1.65 Ω per coil,
  • Holding torque: 3.7 kg-cm (51 oz-in),
  • Inductance: 3.2 mH per coil,
  • Lead length: 30 cm (12″),
  • Output shaft supported by two ball bearings,
  • L-Bracket for NEMA 17 Stepper Motors,
  • Mounting Hub for 5mm Shaft,
  • Two #4-40 set screws for securing the hubs to motor shafts,
  • One 0.05″ Allen wrench for use with the set screws
