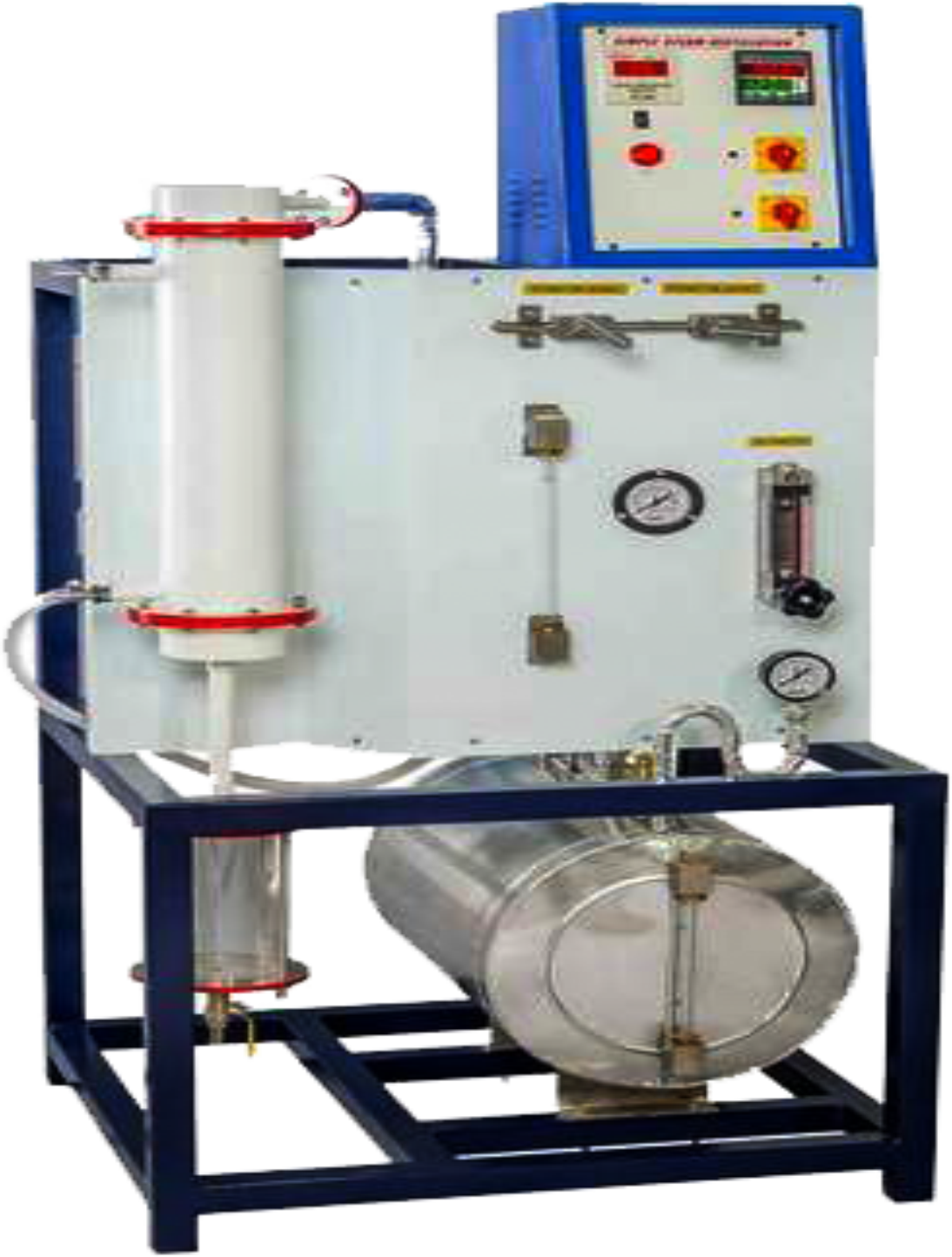

Steam Distillation Set-Up

Order Code: 14227

Category: Process Control Trainers

Introduction: The equipment consists of jacketed pressure vessel for distillation. Steam from a steam generator can either be allowed to enter in the outer jacket or in the vessel. The vapours form the top of the vessel are condensed in the shell and...



SPECIFICATION

Introduction: The equipment consists of jacketed pressure vessel for distillation. Steam from a steam generator can either be allowed to enter in the outer jacket or in the vessel. The vapours form the top of the vessel are condensed in the shell and tube type condenser by circulating cooling water, supplied by laboratory overhead tank.

Specifications: Distillation Vessel (Jacketed Type):Material Stainless Steel,Capacity 3 Ltrs. insulated with Ceramic wool and Aluminium cladding.Flow measurement: Rotameter for cold water.Steam Generator: Made of Stainless Steel, provided with Pressure Gauge & Level Indicator, Safety valve & insulated with ceramic wool and Aluminium cladding.Separating Chamber: Borosilicate Glass. Capacity 2 Ltrs.Condenser: Shell & Tube type made of Stainless Steel.Distillate tank: Made of Stainless Steel, capacity 5 Ltrs.Heater: Nichrome wire heater. 3 kW.Temperature Sensors: RTD PT-100 type.The whole set-up is ingeniously designed and schematically arranged on a powder-coated rigid structure.
