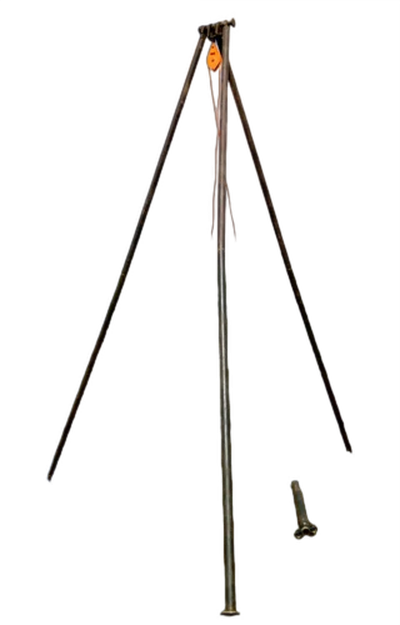

Standard Penetration Test SPT

Order Code: 22236157.1

Category: General Lab Equipment II

63.5kg Standard Penetration Test (SPT) for soil testing/10kg /30kg /50kg/65.5kg SPT. Features The dynamic probing rig SPT-H is a highly functional soil investigation machine, easy to transport due to the folding mast feature. It is versati...



SPECIFICATION

63.5kg Standard Penetration Test (SPT) for soil testing/10kg /30kg /50kg/65.5kg SPT.

Features

  • The dynamic probing rig SPT-H is a highly functional soil investigation machine, easy to transport due to the folding mast feature.
  • It is versatilely suitable for working in confined spaces and is displaced in outdoor terrains by hand.
  • It features a three-legged foot with crank legs for solid erection on site. Suitable for perpendicular working in all positions.
  • Dynamic Probing DPL, DPM, DPH and SPT.
  • It features a three-legged foot with crank legs for solid erection on site. Suitable for perpendicular working in all positions.
  • It offers the vital advantage that the hydraulic power unit can serve a rod extraction unit as well.
  • The dynamic probing rig is driven by a hydraulic motor fed by a separate hydraulic power pack

Technical data

  • Power: Hydraulic
  • Product name: dynamic probing rig
  • Hydraulic station unit:
  • power: 5.5 hp,
  • 4-stroke Honda motor
  • Flow: 15L/min
  • Rated pressure: 16 MPa
  • Hammer mass: DPL (10kg), DPM (30kg), DPH (50kg), DPSH (63.5kg).
  • Number of blows: 15-30 blows per minutes
  • Dropping height: 500/700 mm adjustable
  • Window sampling: with 51 mm outer diameter, 1m length
  • Extraction unit: 5 ton pulling force.
  • Dimensions: 800*800*2300 mm
  • Weight: 230kgs

Standard configuration

  • The dynamic probing rig: 1 set
  • Hydraulic station unit: 1 set
  • Rod: 12 pieces
  • 1 Dia. 22 mm*1m: 2 pieces
  • 2 Dia. 32mm*1m: 10 pieces
  • Brass cap: 2 pieces. One is suitable for dia.22mm rod, the other is for dia.32mm rod
  • Cone: 4 pieces. 900 cones, nominal base areas are 10 cm2, 15 cm2, 16 cm2, and 20 cm2 respectively.
  • Window sampler: 1 piece. Outer diameter 51mm * 1m length
  • Rod clamp: 3 pairs. Suitable for dia. 22 mm and dia. 32mm rod and dia. 51mm window sampler.
  • Rod extraction unit: 1 set including oil cylinder and clamp.
  • Tools: 1 set.
