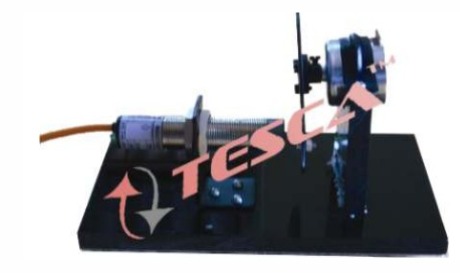

Speed Measurement Sensor Trainer

Order Code: 24257784.11

Category: General Lab Equipment V

Study of speed measurement by light interrupt method 12 V, 2400 RPM permanent magnet dc motor  Speed controller  LED as light source  Photo diode as sensor  Opto interrupter ...



SPECIFICATION

  • Study of speed measurement by light interrupt method

  • 12 V, 2400 RPM permanent magnet dc motor

  • Speed controller

  • LED as light source

  • Photo diode as sensor

  • Opto interrupter disc

  • Signal conditioning circuitry based upon Op amps

  • 4 digit digital counter as speed indicator

  • Test points at various places to study the process

  • The motor and transducer unit is covered with acrylic sheet

  • Built in IC regulated power supplies for motor and process circuit

  • Detailed instruction manual.
