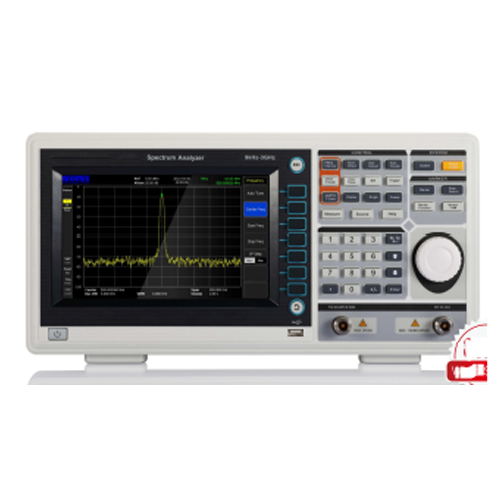

Spectrum Analyzer

Order Code: 171832272.2

Category: General Lab Equipment IV

With full-feature spectrum analysis with real time; and Modulation, pulse, wireless standards analysis capabilities. Specifications: Power Source: 110/220 V ac, 50/60Hz Max Frequency Range: 9 kHz - 7.5 GHz Max Acquisition Bandwidth (Real...



SPECIFICATION

  • With full-feature spectrum analysis with real time; and
  • Modulation, pulse, wireless standards analysis capabilities.
  • Specifications:
  • Power Source: 110/220 V ac, 50/60Hz
  • Max Frequency Range: 9 kHz - 7.5 GHz
  • Max Acquisition Bandwidth (Real Time): 40 MHz
  • Noise Floor (DANL at 1 GHz, Preamp On, dBm/Hz): -164
  • Reference Frequency accuracy, ppm: ± 1 (0.003 with GPS lock)
  • Maximum Input: + 33 dBm (± 40 VDC)
  • Amplitude accuracy, 95% confidence to 3 GHz: ± 0.2 dB
  • 3rd-Order Intercept at 2 GHz: 15 dBm
  • Spurious-Free Dynamic Range(SFDR): <-70 dBc to 3 GHz
  • Minimum signal duration, 100% probability of intercept: 100 ?s
  • EVM on 1 MSymbol/sec QPSK: 0.80%
  • EVM on 802.11n: -39 dB
