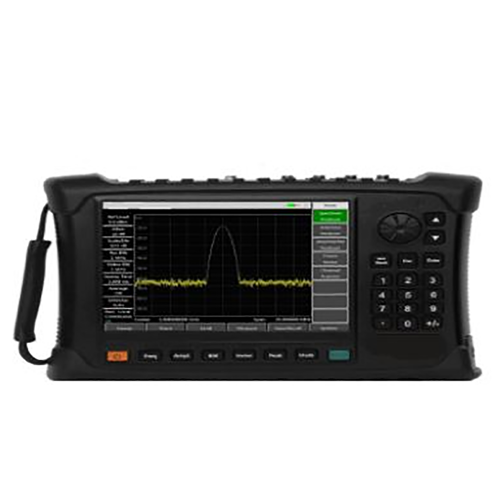

Spectrum Analyzer (Frequency 9KHZ- 32GHZ)

Order Code: 18193411.1

Category: General Lab Equipment III

Frequency  Ranges: 9 kHz to 32 Ghz Measurements:  Occupied Bandwidth, Channel Power, ACPR, C/I, Emission  Mask, Field  Strength High  Accuracy built in power meter Interference Analyzer:  Spectrogram, Signal Stren...



SPECIFICATION

  • Frequency  Ranges: 9 kHz to 32 Ghz
  • Measurements:  Occupied Bandwidth, Channel Power, ACPR, C/I, Emission  Mask, Field  Strength High  Accuracy built in power meter
  • Interference Analyzer:  Spectrogram, Signal Strength, RSSI, Mapping, data recording
  • Dynamic Range: > 106 dB in I  Hz RBW @ 2.4 Ghz
  • DANL: -160  dBm in I  Hz RBW@ 1 Ghz preamp on
  • Phase  Noise: -104  dBc/Hz@ 10 kHz offset at 1 Ghz
  • I  Hz to 10 MHz Resolution Bandwidth (RBW)
  • Fixed attenuator, 40 dB, 50 W, DC-8.5 GHz, Type-N(m) to Type-N(t)
  • Tracking Generator options to 20 Ghz
  • Interference Analyzer
  • Channel  Scanner
  • Marker, cable  and antenna tester with VSWR Measurement
  • 140 MHz Zero-Span IF Output, 30 MHz bandwidth
  • GPS Receiver
  • Increase Frequency Accuracy, Geo-Tag Data Collection
  • Remote monitoring   via LAN capability (software included)
  • 3GPP Signal Analyzers
  • LTE (TDD and FDD) measurement
  • IEEE  802.16 Signal  Analyzers
