SCR actuator cum sensor signal conditioning panel (EMT9)

• Supports signal conditioning circuit for temperature to give output 2-2.5Vdc
• To control the temperature by controlling IR lamp by P/PI controller & signal conditioning of sensor

Instrumentation power cum multichannel DPM  panel (EMT8)

• +12V,-12V,@500mA,&+5V@300mA.
• Multi channel DPM for temperature display.
• 20 pin FRC power bus to supply power to neighboring panel.

 Solar cell experiment panel(ST1)

• 50 X 50 mm X 2nos ,solar cells
• Loading pots (500E and 5K).
• Series parallel combination arrangement.
• PT 100 sensor to measure temperature.
• Cooling Fan to cool heatsink.

Spectral Response & carrier Lifetime Measurement panel (ST2)

• 11 different wavelength LED`s @ constant 20/30mA current to detemine spectral response parameter.
• 50 X 50 mm X 2nos. Solar cells.
• White led bank of 8 LED`s to determine carrier life time parameter.
• IP 12 W switch to select different wave length LEDs.

 ♦ Solar application panel (ST3)

• 12V LED lamp and fan.

Dimmer  panel (HIT5)

• Dimmers 3 nos. to set intensity of halogen lamp.

DMM panel

• DC Voltmeter (0-100V)
• DC Ammeter (0-5A) MPPT Battery Charge panel (Optional) Solar water pump panel (Optional)

Stand alone Invertor panel (Optional)

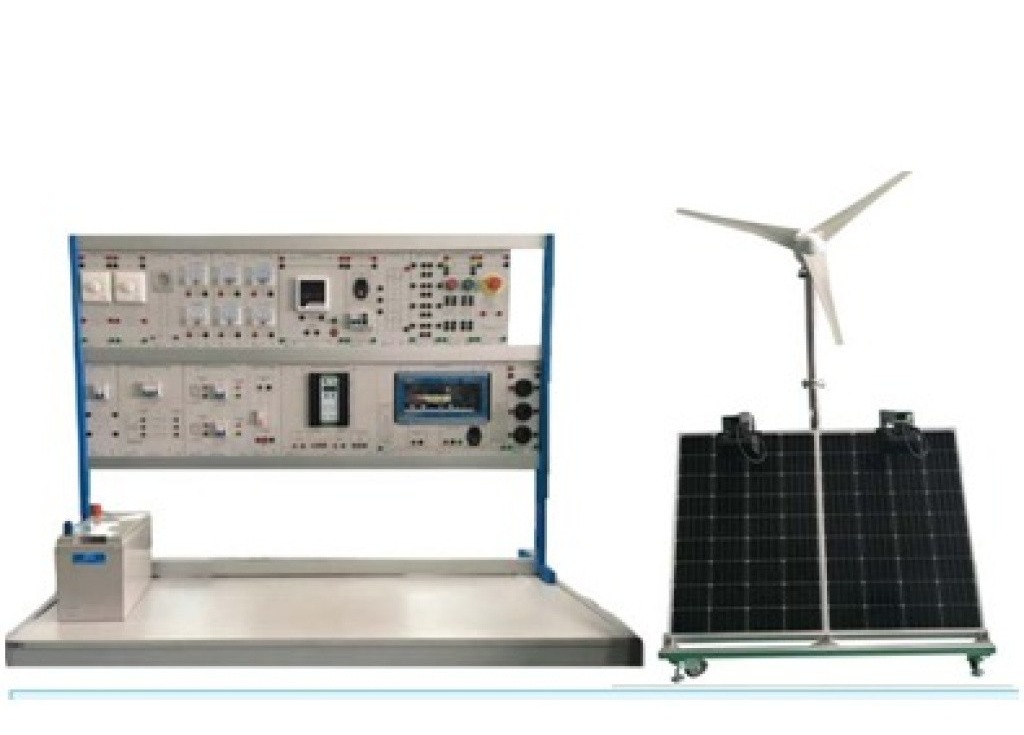

• Table top aluminum profile rack consist of 20W X 2 photo-voltaic (PV) modules mounted on tiltable lockable aluminum frame.
•  (PV module dimensions 500 X 400 X 35 mm) 500W Halogen lamp 2 nos to simulator sun in laboratory.
•  Solar cell experiment panel to study solar characteristics
• • Rheostate as load for SPV modules(800E,2.5A)
