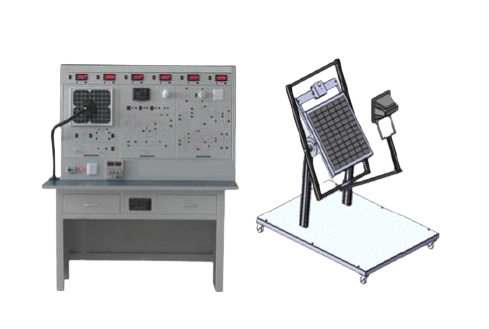

Solar Power Generation System
Order Code: 21225345.5
Category: General Lab Equipment I
Particular 01.Training system control panel having rating of 500 VA and it should be used as solar training system and also power generation as well. 02.Training system control panel should have built in DC voltmeters, DC ammeters, AC Voltmeter AC...
SPECIFICATION
- Particular 01.Training system control panel having rating of 500 VA and it should be used as solar training system and also power generation as well. 02.Training system control panel should have built in DC voltmeters, DC ammeters, AC Voltmeter AC multifunction meter(for AC current, voltage, power, frequency 03.Training should have control panel built in protection circuit for battery & solar panel 04.Training system control panel have built in 30A terminals for making the connection
- 05.Training System includes 250Wp solar panel: 2 Nos., Battery 100Ah: 2 Nos., PCU (POWER AND CHARGE CONTROLLER UNIT): 1 No. , Control
- panel for experiments equipped with meters, connecting terminals and switches 06. Solar Panel: 01 Nos. Pm : 100Wp,Voc : 43V, Isc : 7.75A,Vmp : 35V,Imp : 7.14 POWER AND CHARGE CONTROLLER UNIT Inverter Capacity 300-600VA and Input Voltage 190~260V AC, Output Voltage on Mains mode is same as input, Output Voltage on UPS mode 210~245V,Output Frequency on UPS mode 50Hz ±0.1Hz,Output waveform on Mains mode is same as input, Output waveform on UPS mode Modified Sine wave, Battery Charging Current 12A,Efficiency at full load >80%, UPS overload and short circuit facility is available , control panel design based Microcontroller, MCB : C Type 16A Battery: 01 Nos. Solar Battery of Capacity: 12V/60-100Ah. Charge Controller Technologies: Solar PV Module : 24– 50V,Current :25- 40A, Battery voltage : 12-24V,Technology : MPPT, Charging Stage : Bulk, Absorptions and Float Meter specification : DC Voltmeter : 0-300V ; DC Ammeter : 0-40A ; Multi Function Meter : Voltage-10-230V ; Current-100mA-5A ; Energy meter Display Resolution- 0.001kWh ; Frequency-50Hz Training platform used to conduct below experiment Measurement and Analysis of Different parameters of Solar PV Module : open circuit and short circuit, parameter measurement with series and parallel PV modules , I-V characteristic and Power curve of PV module and PV array ., efficiency and fill factor Load Estimation and calculation Study of Charge controller Study of different parameter of inverter efficiency , PWM switching , charging of batteries , over load and over battery protection
- STANDARD ACCESSORIES: Main cord , Patch cord, Operating manual
- ELECTRIC SUPPLY SPECIFICATION:
- AC 240 v
